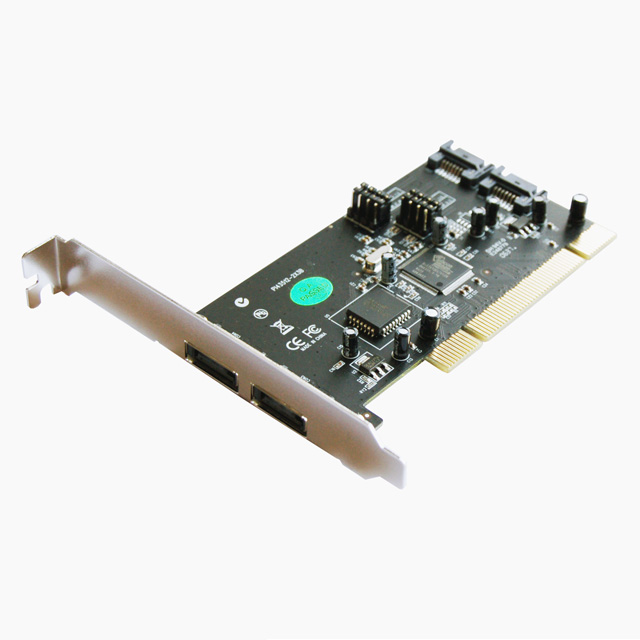

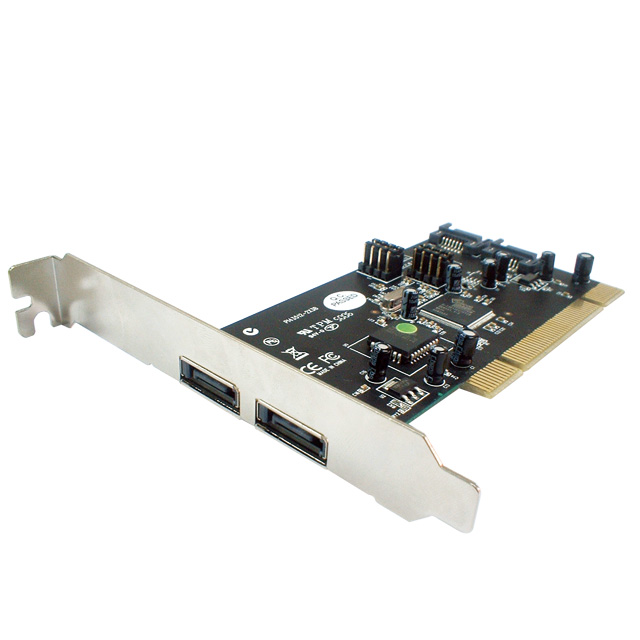

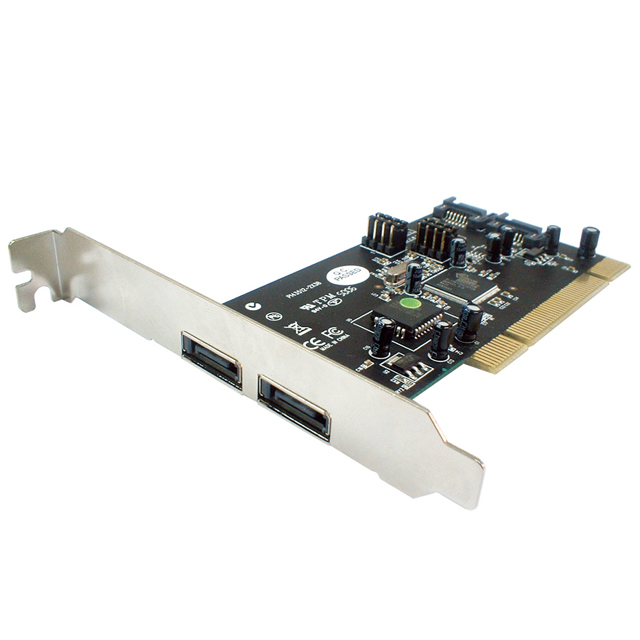

A-183 PCI SATA 2 CH. (2P+2P) Card (SIL)

2013/11/05

2 x internal SATA connectors
2 x eSATA connectors
Data transfer rate support up to 150MB/Sec

  • Ordering Code: A-183
  • Part No: IP-S11-B322-00-00012
  • Solution: SiI3512

Chipset: Silicon Image 3512



Bus Interface: PCI bus 32 bit



Features:

* Compliant with Serial ATA 1.0 specification

* Compliant with PCI Specification Rev. 2.2

* Supports all UDMA and PIO modes

* Supports ACPI

* Dual independent DMA channels with 256K FIFO per channel

* Data transfer rate support up to 150MB/Sec.

* With additional 2 x eSATA IDE connectors



OS Supports: Windows 98SE/ME/NT4.0/2000/XP, Windows Vista 32-bit and Windows Vista 64-bit.

Windows 7 32-bit and Windows 7 64-bit



A-183 Connectors: 2 x internal SATA connectors,2 x eSATA connectors



Accessories:1 x Manual, 1 x CD Driver,A-173, 1 set x SATA Cable  (non Raid model)



Packing Information:

* Retail Box Packing

* 50pcs. Per carton

* Measurement: 77.5x43x25.5 cm

* G.Weight: 16.6 Kg ; N.Weight: 13.1 Kg

* Bulk Packing

* 100pcs. Per carton

* Measurement: 60x42x40.5 cm

* G.Weight: 15 Kg
