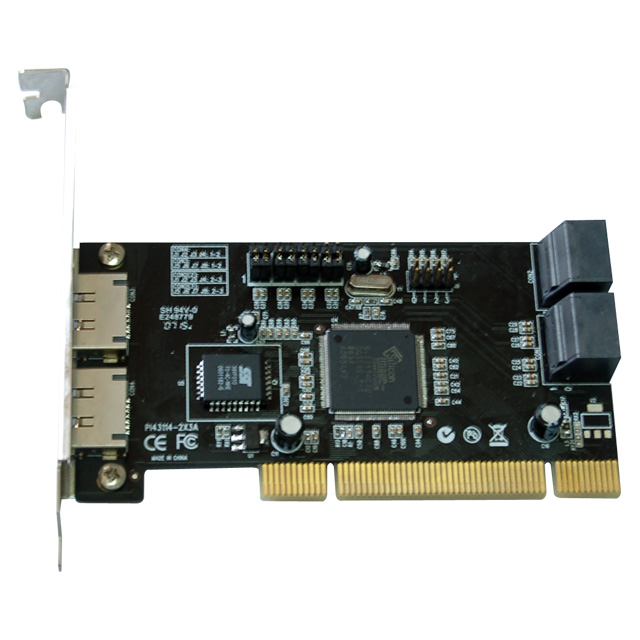

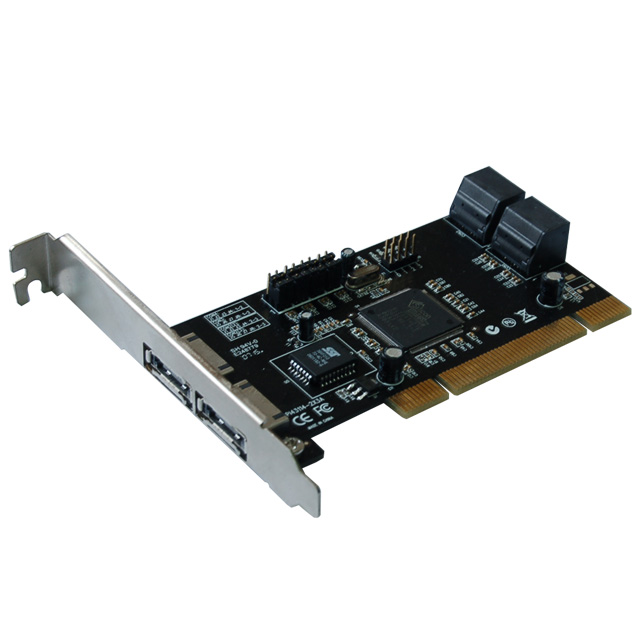

A-224 PCI SATA 2 CH. (2P+2P) Card (SIL)

2013/11/05

4 x internal SATA connectors
2 x external eSATA connectors
Supports SATA up to 150MB/Sec

  • Ordering Code: A-224
  • Part No: IP-S09-B424-00-00012
  • Solution: SiI3114

Specification:

* Silicon Image SiI3114 SATA controller chip

* Compliant with PCI Specification, Rev. 2.3, 32bit, 33/66Mhz

* Compliant with Serial ATA 1.0 specification

* Provides four independent channels to support up to four Serial ATA drives

* Supports RAID0(striping), RAID1(mirroring), RAID5(Parity RAID), RAID 0+1(mirroring+striping) and Concatenation modes

* HDDs function normally when not in RAID sets

* Supports SATA up to 150MB/Sec



Connectors:

* 4 x internal SATA connectors

* 2 x external eSATA connectors



System Requirements:

* Pentium-class computer with one available PCI slot

* Windows 2000/XP/Vista/7/8/8.1 32/64bit



Accessories:1 x Driver CD, 1 x Manual, A-224 1 x SATA Data Cable,



Packing Information:

* Retail Box Packing

* 50pcs. Per carton

* Measurment: 74x38x23.5 cm

* G.Weight: 11 Kg ; N.Weight: 10 Kg
