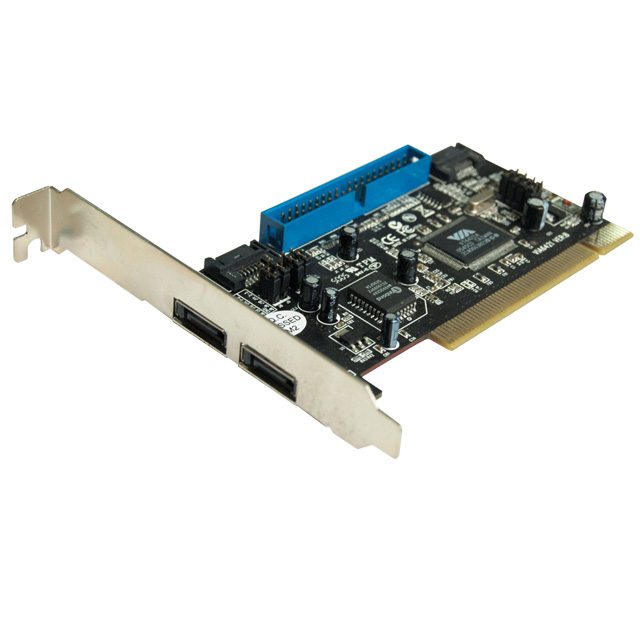

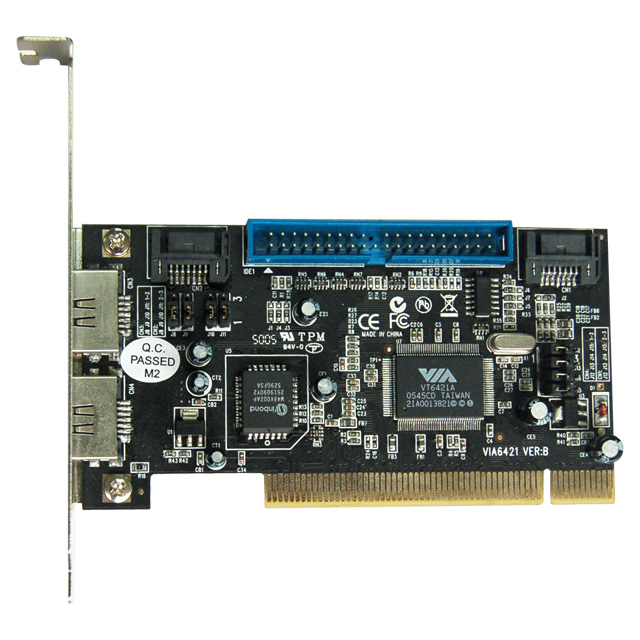

A-230 PCI SATA +ATA/133 Card W/RAID (VIA)

2013/11/05

1 x Ultra ATA 133 IDE connector
2 x internal SATA IDE connectors
2 x external SATA IDE connectors
Data transfer rate support up to 1500MB/Sec.

  • Ordering Code: A-230
  • Part No: IP-V04-C123-00-00011
  • Solution: VT6421A

Highlight:

* Complinat with Serial ATA 1.0 specification

* Compliant with PCI Specification Rev. 2.2

* Supports all UDMA and PIO modes

* Supports ACPI

* Dual independent DMA channels

* Data transfer rate support up to 1500MB/Sec.



Chipset: VIA 6421



Bus Interface: PCI bus 32 bit



Features:

 SATA 1.0:

* Complinat with Serial ATA 1.0 specification

* Compliant with PCI Specification Rev. 2.2

* Supports all UDMA and PIO modes

* Supports ACPI

* Dual independent DMA channels

* Data transfer rate support up to 1500MB/Sec.

ATA 133 :

* Compatible with ATA/ATAPI-6 specifications

* Supports the Scatter/Gather function for the DMA/UDMA function

* Supports PCI power management V1.0 to reduce power consumption

* Supports Raid 0, 1, 0+1 (optional)



 OS Supports: Windows 98SE/ME/NT4.0/2000/XP, Windows Vista 32-bit and Windows Vista 64-bit.

Windows 7 32-bit and Windows 7 64-bit



 Connectors:

* 1 x Ultra ATA 133 IDE connectors

* 2 x internal & 2 x external SATA IDE connectors



Accessories:1 x Manual, 1 x CD Driver, 1 x SATA Date Cable, 1 set  x ATA 133 IDE cable



Packing Information:

* Retail Box Packing

* 50pcs. Per carton

* Measurment: 76.5x42x25.5 cm

* G.Weight: 17 Kg ; N.Weight: 15.5 Kg

* Bulk Packing

* 100pcs. Per carton

* Measurement: 60x42x40.5 cm

* G.Weight: 12.2 Kg
