A-341 PCI-E SATA II 2 CH. (2P+2P) Card

2013/11/19

2 x internal SATA connectors
2 x external eSATA connectors
Data transfer rate at 3.0 Gbps for Serial ATA II

  • Ordering Code: A-341
  • Part No: IE-S13-B222-00-00012 (eSATA)
  • Solution: SiI3132

Chipset: Silicon Image Sil 3132



Bus Interface: PCI Express x1



Features:

* Fully compatible with PCI Express 1.0a specifications

* Compliant with Serial ATA II specifications

* Supports NCQ

* Supports two independent Serial ATA channels

* Supports SATA I and SATA II hard drives

* Data transfer rate at 3.0 Gbps for Serial ATA II

* Data transfer rate at 1.5 Gbps for Serial ATA I

* Throughput of one-lane PCI Express at 2.5 Gbps

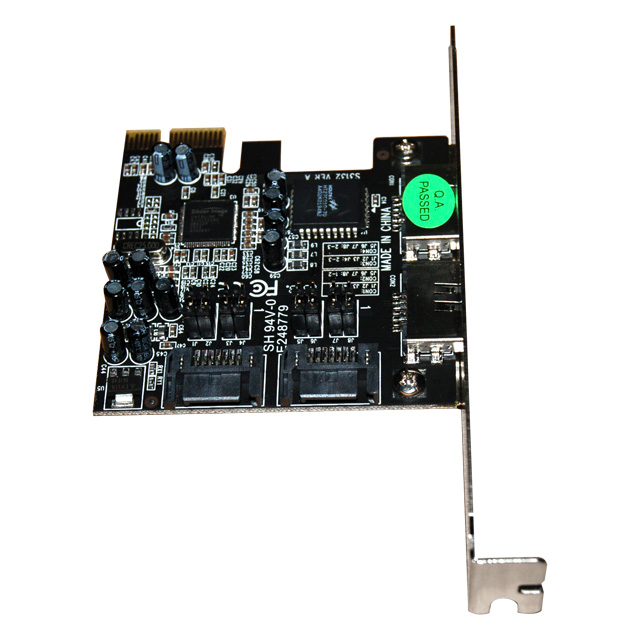

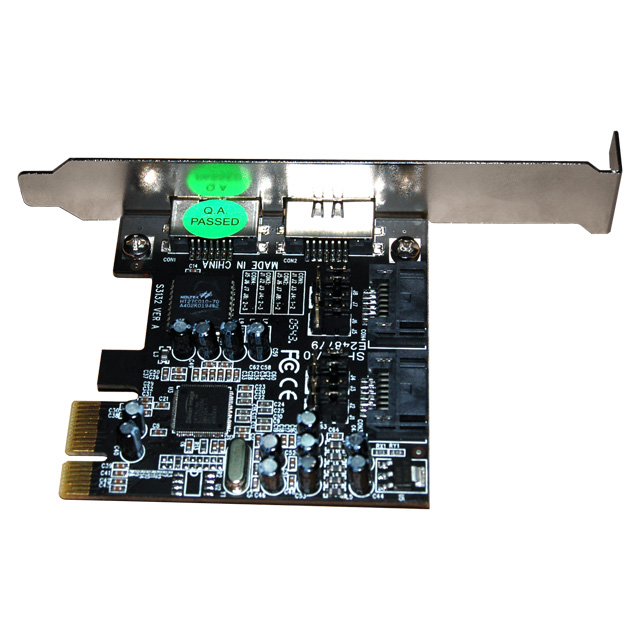

A-341 Connectors: 2 x internal SATA connectors, 2 x external eSATA connectors



System Requirement:

* PCI Express-enabled system with one available PCI Express slot

* Windows7/8.1/10(32&64)



Accessories:

1 x Manual

1 x CD Driver,

A-341 1 x SATA Data Cable



Packing Information:

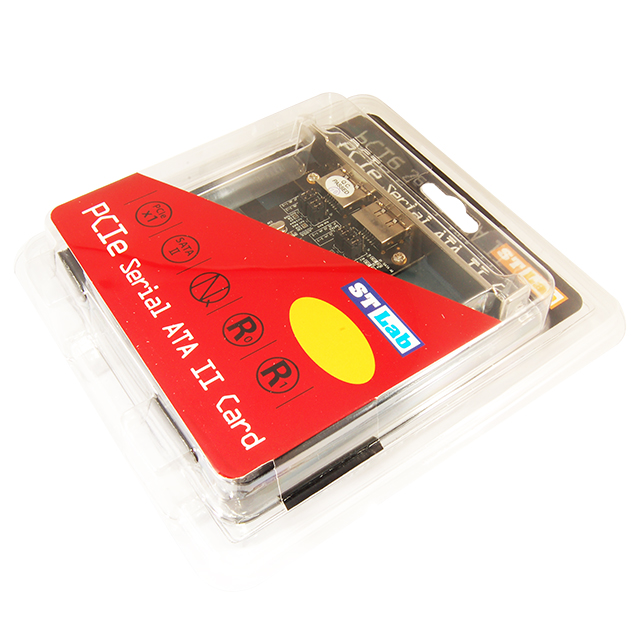

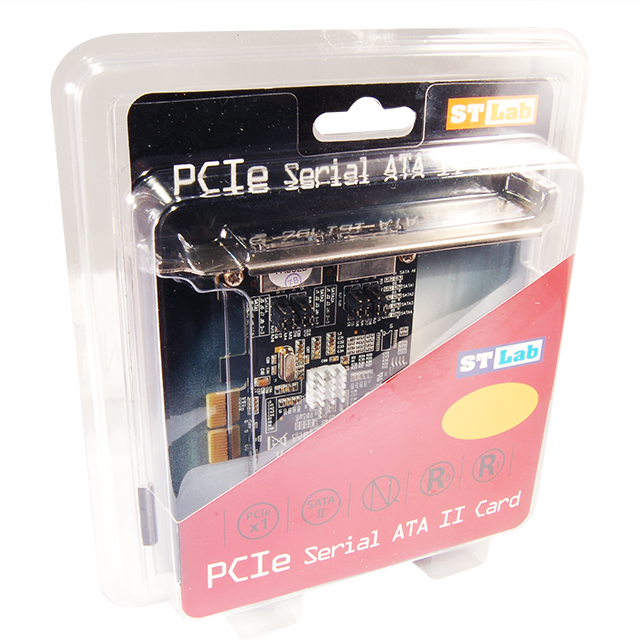

* Retail Box Packing

* 60pcs. Per carton

* Measurment: 54x52x40 cm

* G.Weight: 14 Kg ; N.Weight: 12 Kg

* Bulk Packing

* 100pcs. Per carton

* Measurement: 60x42x40.5 cm

* G.Weight: 16 Kg
