A-360 PCI-E SATA II 1 CH.(1P+1P) Card

2013/11/19

1 x internal SATA connectors
1 x external eSATA connectors
Data transfer rates up to 3.0Gbps (300MBps)

  • Ordering Code: A-360
  • Part No: IE-S15-A111-00-00012
  • Solution: SiI3531

Description: A-360 PCI EXPRESS SATA II 300 1 CHANNEL (1EXT.+ 1INT.) PORT WITH eSATA CONNECTOR


Specification:

* Compliant with PCI Express Base Specification 1.0a

* Compliant with Serial ATA 1.0a specification with support for full complement of SATA II optional features

* PCI Express 1-lane (x1) SATA II adapter works with PCI Express slots with different lane width

* Installs in any available PCI Express slot and support data transfer rates up to 3.0Gbps (300MBps)

* Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order date delivery NCQ

* Independent command fetch, scatter / gather, and command execution

* Hot-swapping feature allows you to attach/detach SATA device without first powering your computer off



Connectors: 1 x internal SATA connectors, 1 x external eSATA connectors (Any 1 Connection)



System Requirements:

* Supports Windows7/8.1/10(32.64)

* PCI Express-enabled system with an available PCI Express slot



Accessories:

1x Driver CD

1x User Manual

1 x SATA Data Cable



Packing Information:

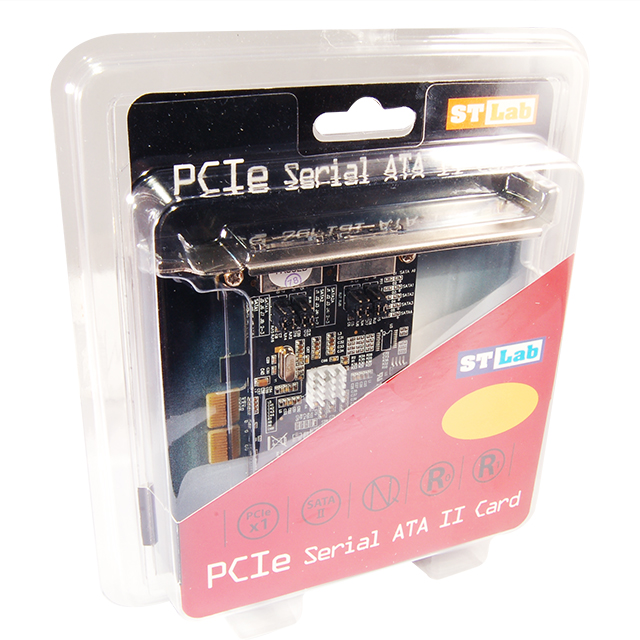

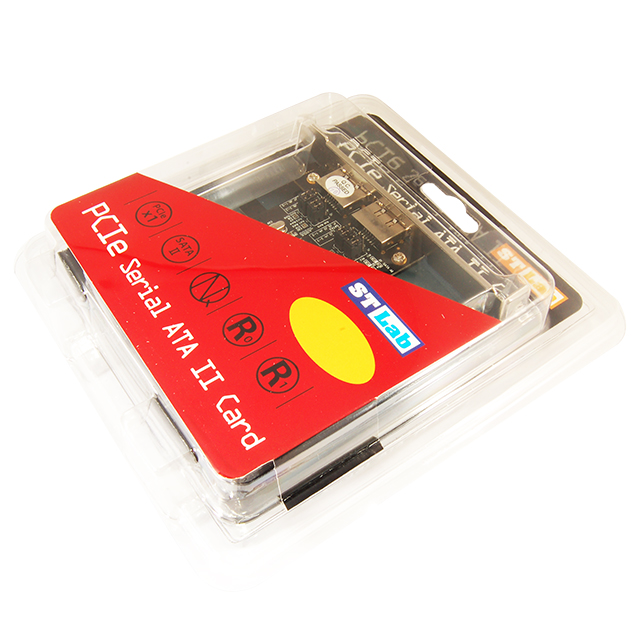

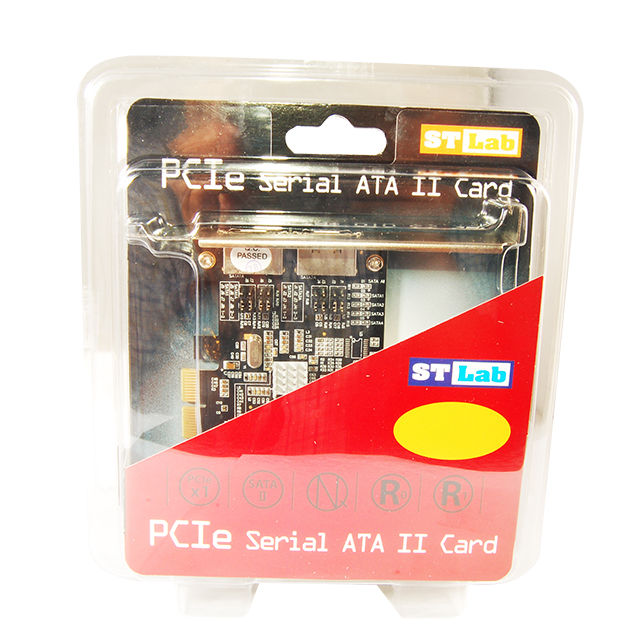

* Retail Box Packing

* 60pcs. Per carton

* Measurment: 54x52x40 cm

* G.Weight: 12.5 Kg ; N.Weight: 10.5 Kg

* Bulk Packing

* 100pcs. Per carton

* Measurement: 60x42x40.5 cm

* G.Weight: 16 Kg
