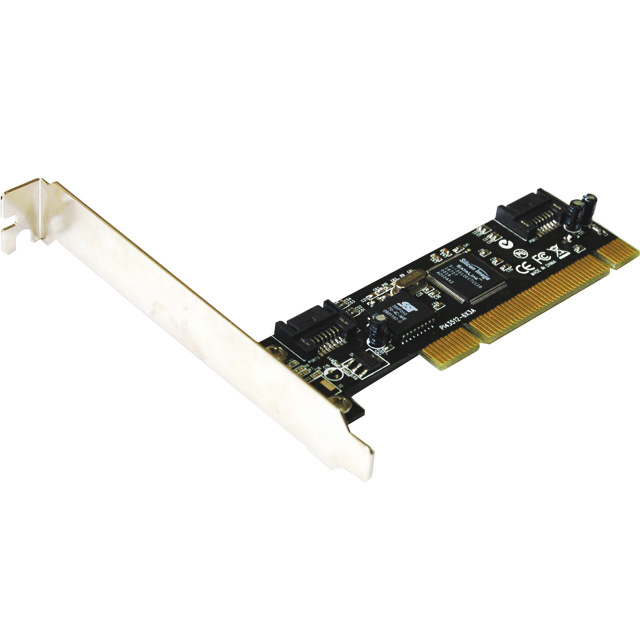

A-390 PCI SATA 2 CH. (2P INT.) Card

2013/11/05

2 x internal SATA connectors
Supports SATA up to 150MB/Sec

  • Ordering Code: A-390
  • Part No: IP-S11-B402-00-00012
  • Solution: SiI3512

Specification:

* Silicon Image SiI3512 SATA controller chip

* Compliant with PCI Specification, Rev. 2.3

* Compliant with Serial ATA 1.0 specification

* Provides two independent channels to support up to two Serial ATA drives

* Supports RAID0(striping) and RAID1(mirroring) for speed and data protection respectively

* HDDs function normally when not in RAID sets

* Supports SATA up to 150MB/Sec

* Connnentors: 2 x internal SATA connectors



System Requirements:

* Pentium-class computer with one available PCI slot

* Windows 2000, XP/2003 32/64 bit, Vista 32/64bit, 7 32/64 bit



Accessories:1 x Driver CD, 1 x Manual



Packing Information:

* Retail Box Packing

* 50pcs. Per carton

* Measurment: 74x38x23.5 cm

* G.Weight: 7.8 Kg ; N.Weight: 6.8 Kg
