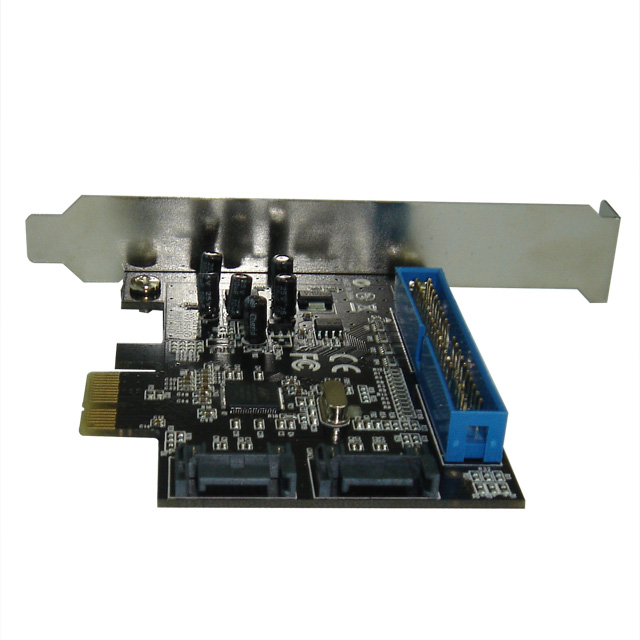

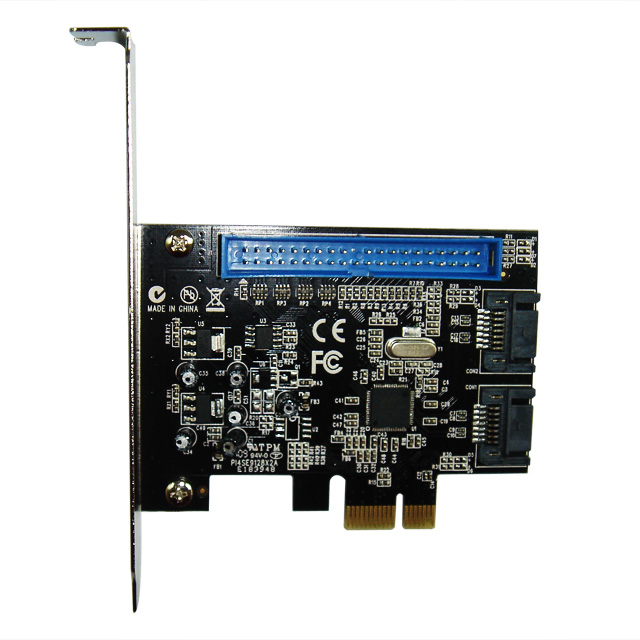

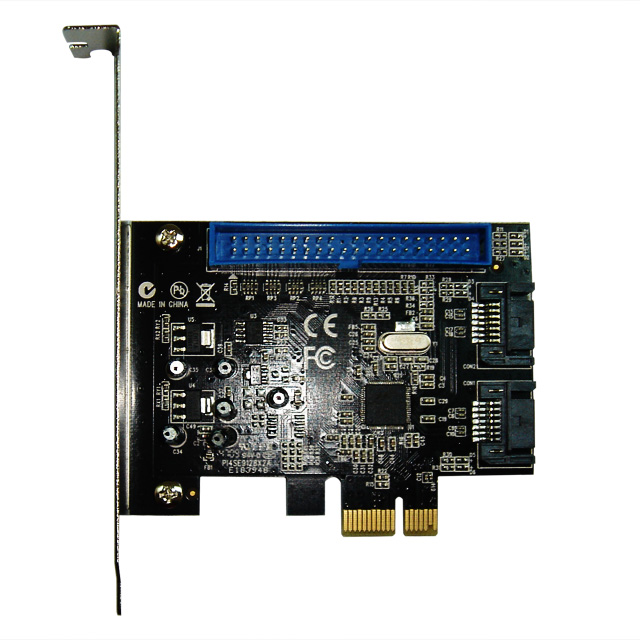

A-440 PCIe SATA 6G + PATA Card (3 Channels, 2 x int. SATA + 1 x PATA Ports)

2013/11/20

2 x internal SATA connectors
1 x PATA connector
Compatible with SATA 6G, 3G and 1.5G Hard Drives
Support RAID0 function: RAID 0, RAID 1 (only support SATA hard drives on SATA port)

  • Ordering Code: A-440
  • Part No: IE-M14-F203-00-00012
  • Solution: 88SE9128

Product Information :



Part No: IE-M14-F203-00-00012



Description: A-440 PCIe SATA 6G + PATA  Card (3 Channels, 2 x int. SATA + 1 x PATA Ports)



Highlight:

* PCI-Express 2.0 x 1 (Compatible with PCI-Express 1.0)

* Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps



Specification:

* PCI-Express 2.0 x 1 (Compatible with PCI-Express 1.0)

* Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps

* Compatible with SATA 6G, 3G and 1.5G Hard Drives

* Hot plug and Hot Swap

* Support Native Command Queuing (NCQ)

* Supports Port Multiplier FIS based switching or command based switching

* Support ATA and ATAPI commands

* Support RAID0 function: RAID 0, RAID 1 (only support SATA hard drives on SATA port)



Bus Interface:

* PCI-Express x 1



Connectors:

* 2 x internal SATA connectors

* 1 x PATA connector



System Requirements:

* PCI Express-enabled system with one available PCI Express slot

* Windows XP/Vista/7 (32/64 bit)



Accessories:

1 x Driver CD

1 x User Manual



Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 56.5x36.1x43 cm

* G.Weight: 7.4 Kg ; N.Weight: 6.4 Kg
