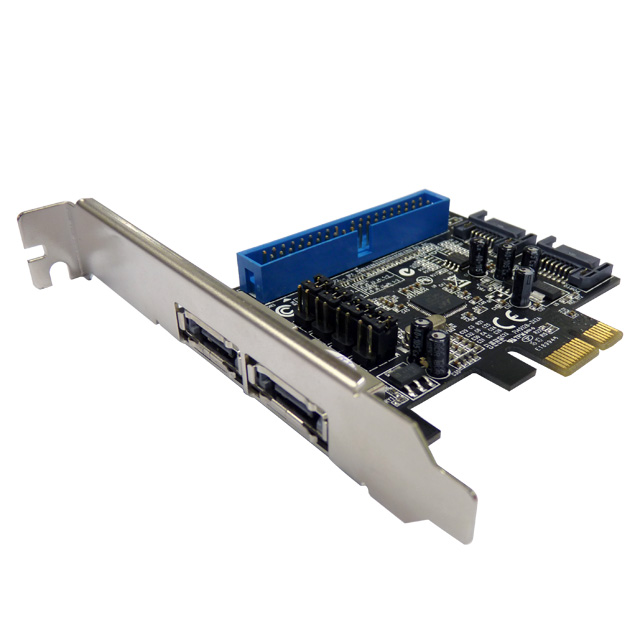

A-470 PCIe SATA 6G + PATA (RAID) Card

2013/11/20

Compatible with SATA 6G, 3G and 1.5G Hard Drives
Support RAID0 function: RAID 0, RAID 1 (only for SATA hard drives)

  • Ordering Code: A-470
  • Part No: IE-M14-C423-00-00012
  • Solution: 88SE9128

Specification:

* Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 1.x

* Compliant with Serial ATA Specification 3.0

* Compatible with SATA 6G, 3G and 1.5G Hard Drives

* Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps

* Hot plug and Hot Swap

* Supports Native Command Queuing (NCQ)

* Supports Port Multiplier FIS based switching or command based switching

* Supports ATA and ATAPI commands

* Support RAID0 function: RAID 0, RAID 1 (only for SATA hard drives)



Bus Interface: PCI-Express x1



Connectors:

* 2 x SATA connectors

* 2 x eSATA connectors

* 1 x PATA connector



System Requirements:

* PCI Express-enabled system with one available PCI Express slot

* Windows XP/Server 2003/Vista/7 (32/64 bit)



Accessories:

1 x Driver CD

1 x User Manual

1 x PATA Cable (optional)

1 x SATA Data Cable (optional)



Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 56.5x36.1x43 cm

* G.Weight: 9.6 Kg ; N.Weight: 7.6 Kg
