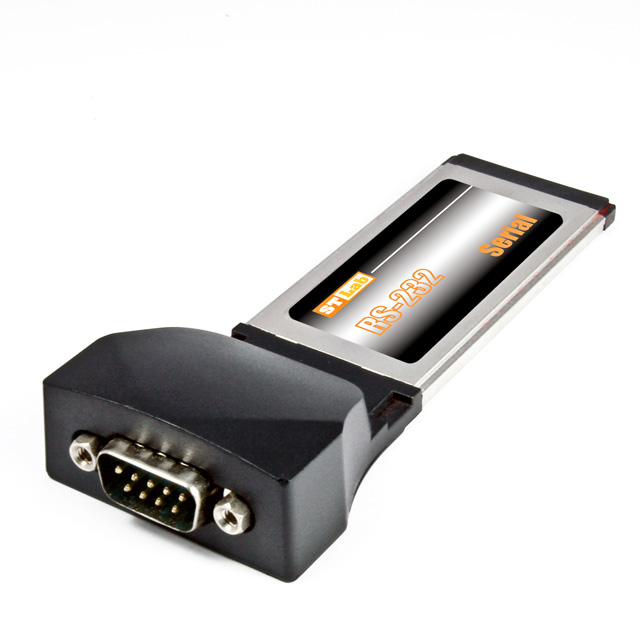

C-261 ExpressCard Serial 1 Port

2014/01/07

Provides one DB9 RS232 port
Supports serial transmission rate up to 230400bps

  • Ordering Code: C-261
  • Part No: CE-P02-4110-11-00012
  • Solution: PL2303HX

Specification:

* Fully compliant with ExpressCard Specification 1.0

* ExpressCard/34 Form Factor Module

* Provides one DB9 RS232 port

* Supports serial transmission rate up to 230400bps

* No IRQ resource required

* Bus Powered ¨C no separate power supply or battery required

* Easy Plug and Play Installation

* Works with various types of RS232 serial devices including modems, PDAs, label printers, bar code scanners, digital cameras, and more



System Requirements:

* Windows 2000/XP/Server 2003/Vista/7/8/10 (32/64 bit)

* ExpressCard-enabled system with an available ExpressCard slot



Accessories:

1 x Manual, 1 x Driver CD



Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 53.7x46.5x37.5 cm

* G.Weight: 7.5 Kg ; N.Weight: 5.5 Kg

* Retail Bulk Packing

* 100pcs. Per carton

* Measurment: 61x43x42.5cm

* G.Weight: 11.5 Kg
