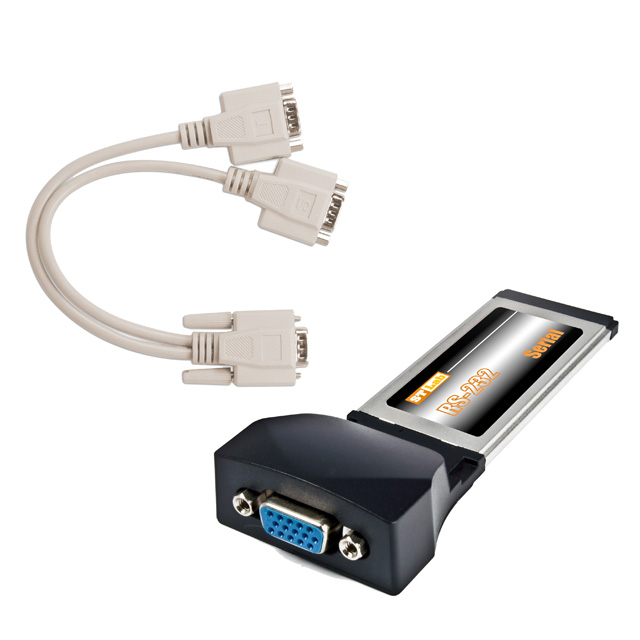

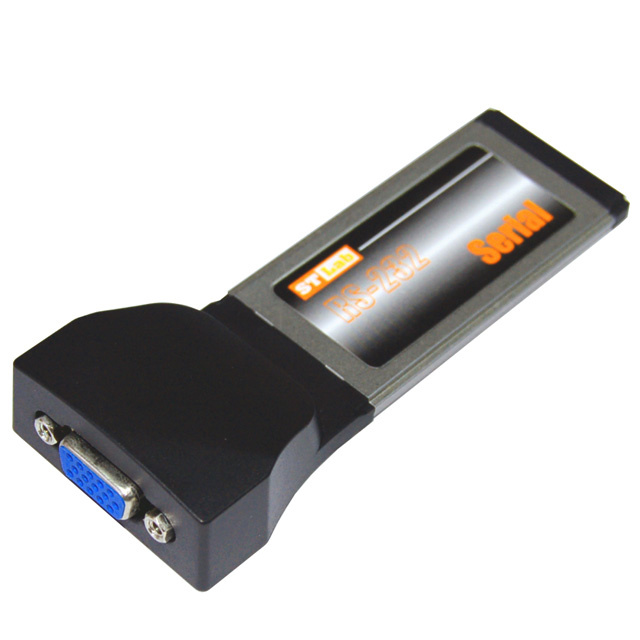

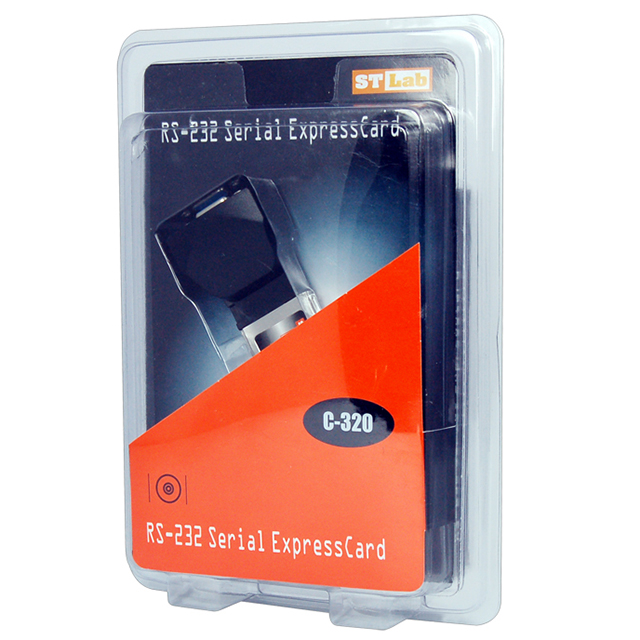

C-320 ExpressCard Serial 2 Port

2014/01/07

Supports serial transmission rate up to 230400bps
Provides two DB9 RS232 ports

  • Ordering Code: C-320
  • Part No: CE-N35-4210-11-00012
  • Solution: MCS7820

Specification:

* Fully compliant with ExpressCard Specification 1.0

* ExpressCard/34 Form Factor Module

* Provides two DB9 RS232 ports

* Supports serial transmission rate up to 230400bps

* No IRQ resource required

* Bus Powered C no separate power supply or battery required

* Easy Plug and Play Installation

* Works with various types of RS232 serial devices including modems, PDAs, label printers,bar code scanners, digital cameras, and more



System Requirements:

* Windows 2000/XP/Server 2003/Vista/7/8/10 (32/64 bit)

* ExpressCard-enabled system with an available ExpressCard slot



Accessories:

1 x Manual, 1 x Driver CD,1xDBHD 15 Female to 2XDB9 male cable



Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 53.7x46.5x37.5 cm

* G.Weight: 10.8 Kg ; N.Weight: 8.8 Kg
