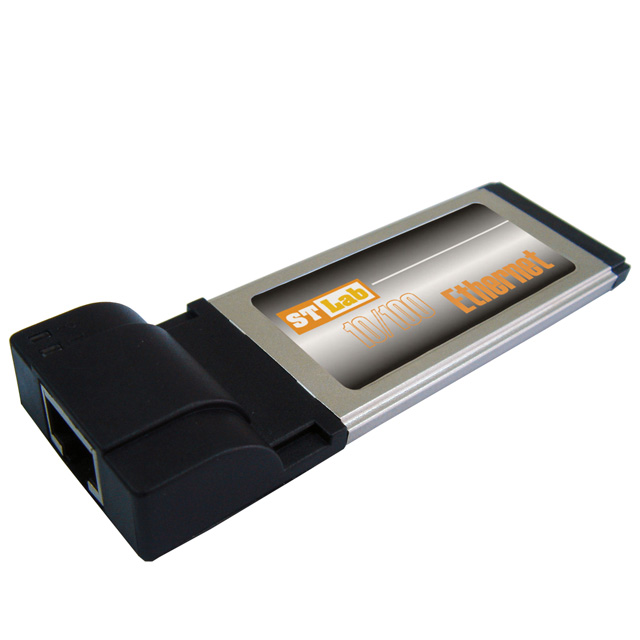

C-331 ExpressCard LAN 100 (RealTEK)

2014/01/08

Compliant with 10/100 IEEE 802.3 specification
10/100M data rate auto-negotiation
LEDs indicate the status of data transmission

  • Ordering Code: C-331
  • Part No: CE-R15-5110-11-00012
  • Solution: RTL8103EL

Chipset: Realtek RTL8103EL



Bus Interface: ExpressCard



Features:

* Fully compliant with ExpressCard Specification 1.0

* ExpressCard/34 Form Factor Module

* Compliant with 10/100 IEEE 802.3 specification

* 10/100M data rate auto-negotiation

* LEDs indicate the status of data transmission

* Automatic MDI/MDIX crossover at all speed

* Support Wake On LAN (WOL) power management

* Feature full duplex mode that doubles the network connection speed



OS Supports: Supports Windows 2000, XP/2003 32/64 bit, Vista 32/64 bit, 7 32/64 bit



Connectors: 1 x RJ45



Accessories:

1 x Manual

1 x Driver CD



Packing Information:

* Retail Box Packing

* 80pcs. Per carton

* Measurment: 55x54.4x37 cm

* G. Weight: 10.7Kg
