F-261 PCI-E IEEE1394a (TI) (2P+1P) Card

2013/11/19

2 x external 6-pin FireWire(1394a) ports
1 x internal 6-pin FireWire(1394a) port
Data transfer rates up to 400Mbps

  • Ordering Code: F-261
  • Part No: IE-T08-2121-00-00012
  • Solution: XIO2200AZHH

Chipset:Texas Instruments XIO2200AZHH



Bus Interface:PCI-Express X1



Features:

* Compliant with PCI Express Base Specification 1.0a

* Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 Standards

* PCI Express 1-lane(x1) FireWire adapters works with PCI Express slots with different lane width

* Installs in any available PCI Express slot and supports data transfer rates up to 400Mbps

* Two external and One internal 6-pin FireWire(1394a) ports to support DV camcorders, hard disk, removable drives, scanner, digital cameras and other FireWire audio/video devices

* Onboard power connector to provide reliable source



Connectors:2 x external & 1 x internal IEEE 1394a connectors



System Requirements:

* Windows ® XP/Vista/7 /8 /10 (32/64 bit)

* PCI Express-enabled system with an available PCI Express slot



Accessories:

1 X Manual

1 x 1394a Cable



Packing Information:

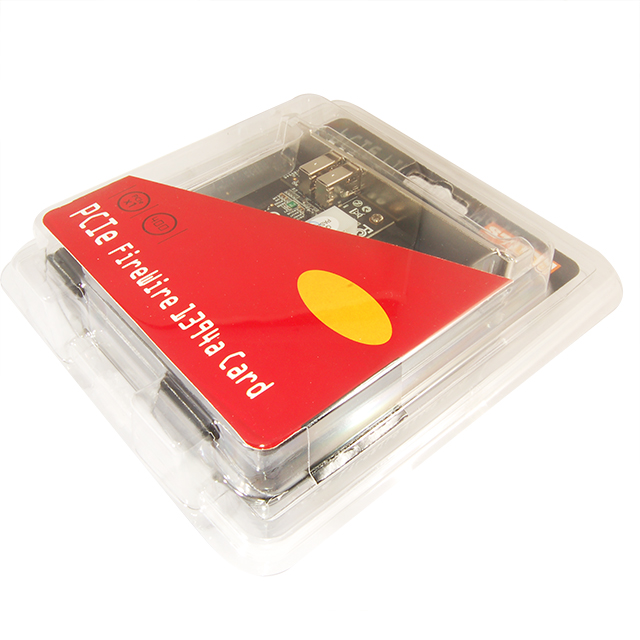

* Retail Blister Packing

* 60pcs. Per carton

* Measurment: 54 x 52 x 40 cm

* G.Weight: 12.2 Kg ; N.Weight: 10.2 Kg
