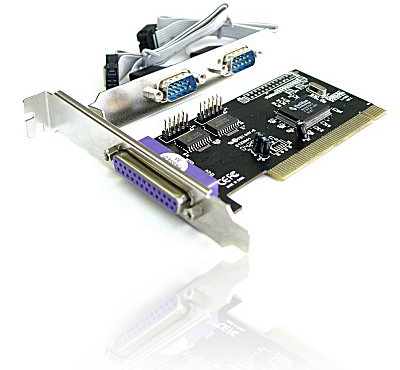

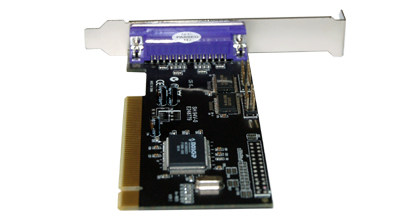

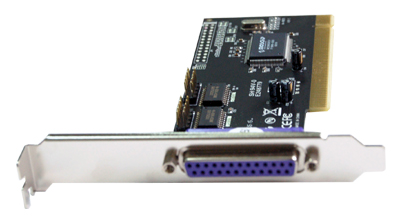

I-152 PCI 2S1P IO CARD

2013/11/04

1 x 25 pins parallel connector
2 x 9 pins serial connectors
Data transfer rate support up to 115200bps (Serial Port)
Data transfer rate support up to 1.5MB/Sec. (Parallel Port)

  • Ordering Code: I-152
  • Part No: IP-N04-7230-00-00011
  • Solution: NM9835

Chipset: Moshcip 9835



Bus Interface: PCI bus 32 bit



Features:

* Support Standard Parallel Port (SPP), Enhanced Parallel Port (EPP) & Enhanced Capability Port (ECP)

* Data transfer rate support up to 115200bps (Serial Port)

* Data transfer rate support up to 1.5MB/Sec. (Parallel Port)

* Supports up to 2 x  16550 Fast Uart serial port

* Easy Plug and Play installation

* Automatically selects IRQ & IO address

* Supports IRQ sharing

* Multi card capability allow for upgrade with additional serial or parallel cards

* Low profile version available



Connectors: 1 x 25  pins parallel  connector,2 x 9 pins serial connectors



System Requirements:

* Windows 2000/XP/Server 2003/Vista

* Available PCI slot



Accessories:

1 x Manual,

1 x CD Driver

1 x Backet with two DB9 male serial ports



Packing Information:

* Retail Box Packing

* 50pcs. Per carton

* Measurment: 73.5x36x22.5 cm

* G.Weight: 10 Kg

* Bulk Packing

* 100pcs. Per carton

* Measurement: 60x42x40.5 cm

* G.Weight: 16 Kg
