I-294 PCI-E 2S1P Serial Card

2013/11/18

2 x DB9 male serial connectors
1 x DB25 female parallel connector
Serial data transfer rate up to 230400bps
Parallel data transfer rate up to 1.5Mbps

  • Ordering Code: I-294
  • Part No: IE-N48-7130-00-00012
  • Solution: MCS9901CV-CC

Specification:

* Compliant with PCI Express Base Specification 1.0a

* Supports 2 x UART serial port

* Built-in 16C450/550 compatible UART

* On chip 256 byte FIFOs in transmit and receive path of each serial port

* Serial data transfer rate up to 230400bps

* Supports Standard Parallel Port (SPP), Enhanced Parallel (EPP) & Enhanced Capability Port (ECP)

* Parallel data transfer rate up to 1.5Mbps

Bus:* PCI-Express x1



Connectors:

* 2 x DB9 male serial connectors

* 1 x DB25 female parallel connector



System Requirements:

* Windows XP/Vista/7/8/8.x/10/11 (32/64 bit)

* PCI Express-enabled system with an available PCI Express slot



Accessories:

1 x Bracket with two DB9 male serial ports

1 x Driver CD

1 x User Manual



Packing Information:

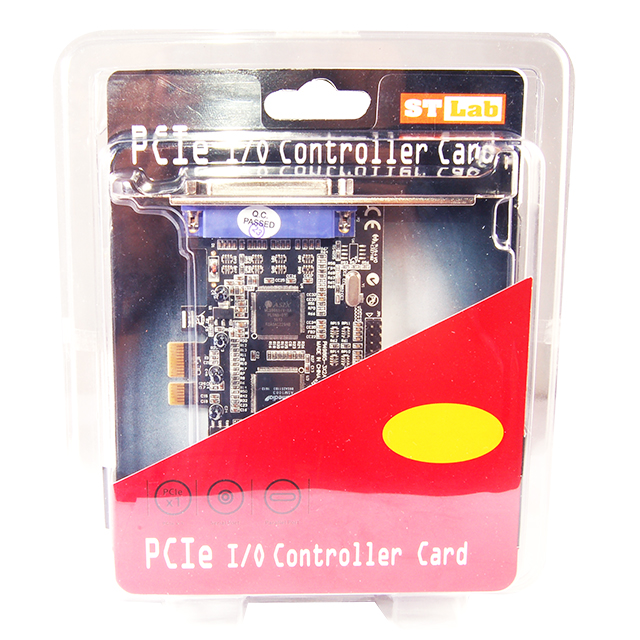

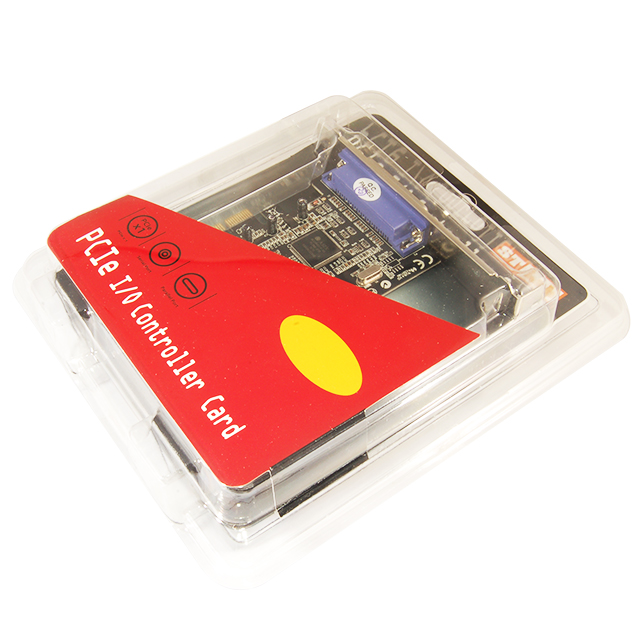

* Retail Blister

* 40pcs. Per carton

* Measurment: 56.5 x 36.1 x 3 cm

* G.Weight: 12 Kg ; N.Weight: 10.5 Kg
