I-461 PCI-E 4S1P IO Card

2013/11/19

4 x UART serial port
1 x DB25 female parallel connector
Built-in 16C450/550 compatible UART
Serial data transfer rate up to 230400bps

  • Ordering Code: I-461
  • Part No: IE-N51-7150-00-00012
  • Solution: MCS9900+MCS9922

Features:

* Compliant with PCI Express Base Specification 1.1

* Supports 4 x UART serial port

* Built-in 16C450/550 compatible UART

* On chip 256 byte FIFOs in transmit and receive path of each serial port

* Serial data transfer rate up to 230400bps

* Supports Standard Parallel Port (SPP), Enhanced Parallel (EPP) & Enhanced Capability Port (ECP)

* Parallel data transfer rate up to 1.5Mbps



Bus: PCI-Express x1



Connectors:

* 4 x DB9 male serial connectors

* 1 x DB25 female parallel connector



System Requirements:

* Windows XP/Vista/7/8.1/10/11 (32/64 bit)

* PCI Express-enabled system with an available PCI Express slot



Accessories:

* 1 x Bracket with two DB9 male serial ports

* 1 x Bracket with one DB25 female parallel port

* 1 x Driver CD

* 1 x User Manual



Packing Information:

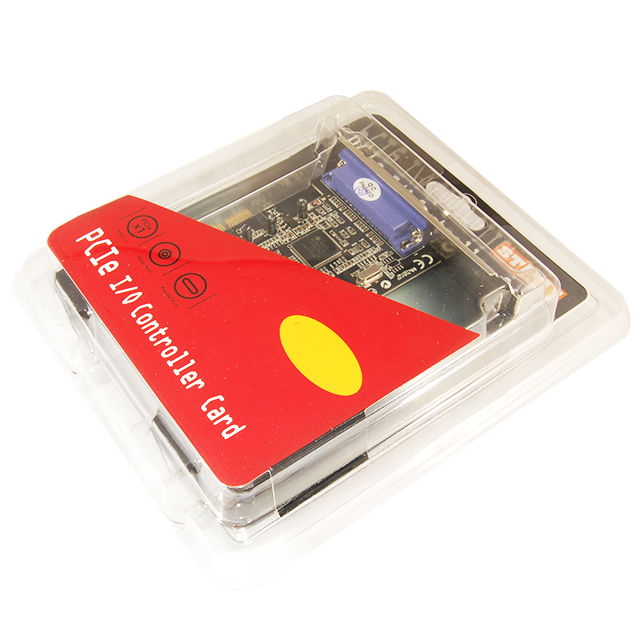

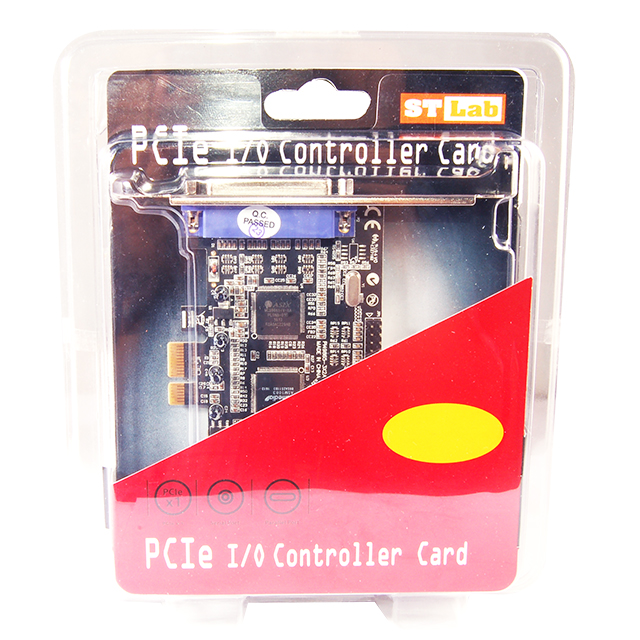

* Retail Blister

* 40pcs. Per carton

* Measurment: 56.5 x 36.1 x 43 cm

* G.Weight: 12.4 Kg ; N.Weight: 10.4 Kg
