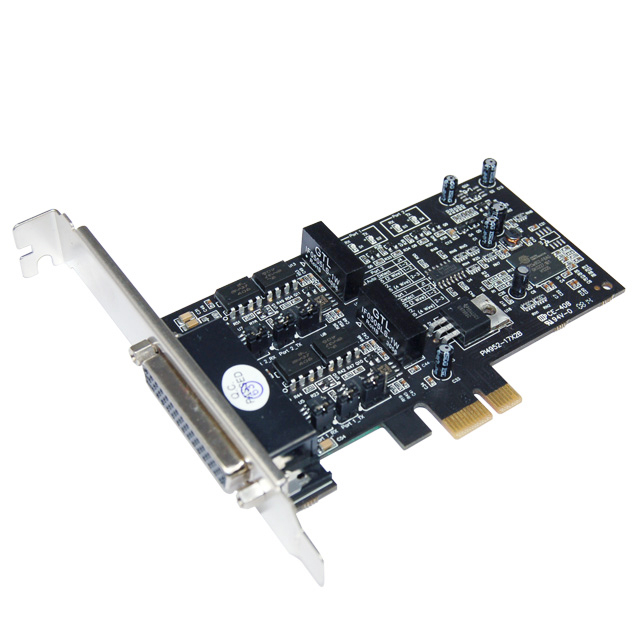

IP-160 PCIe RS-422/485 2-Port Card w/isolation

2014/08/04

Built-in 16C950 compatible UART
128-bype deep transmit/receive FIFOs
Serial communication speeds up to 1Mbps
​15KV ESD protection on all signal pins
2KV isolation protection for all signal and power (Isolation version only)

  • Ordering Code: IP-160
  • Part No: IE-X06-M220-00-00012
  • Solution: OXPCIe952

RS-422/485 I/O series, a line of PCI Express Multi-port Serial Communication Board, is designed to meet PCI Express Base Specification 1.1.

It can be installed in virtually any available PC system and compatible with all major operating systems.

Users do not need to manually set jumpers to configure I/O addresses and IRQ locations.

This boards offer independent RS-422 and RS-485 ports for connecting kinds of serial terminals on the PC based systems.

This board is industrial stand which offer a reliable and high performance solution for serial multi-port communications.


Features

Compliant with PCI Express Base Specification 1.1

Supports x1, x4, x8, x16 (lane) PCI Express Bus connector keys

Built-in 16C950 compatible UART

128-bype deep transmit/receive FIFOs

Serial communication speeds up to 1Mbps

RS-422 and RS-485 auto detect and switching

Low profile form factor

15KV ESD protection on all signal pins

2KV isolation protection for all signal and power (Isolation version only)

Plug-n-Play, I/O address and IRQ assigned by BIOS



System Requirements

Windows XP/Vista/7/8/10 (32/64 bit), Linux 2.6.x/3.x

One available PCI Express slot



Package Contents

1 x RS-422/485 PCIe Card

1 x Driver CD

1 x User Manual

1 x Fan Out Cable


Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 60 x 48.5 x 34.5 cm
