IP-190 PCIe RS-422/485 4-Port Card

2021/11/15

256 bytes TX and RX FIFOs
Up to 921.6kbps serial data rate
RS-422 and RS-485 auto detect and switching

  • Ordering Code: IP-190
  • Part No: IE-K11-M140-00-00012
  • Solution: XR17V354

RS-422/485 I/O series, a line of PCI Express Multi-port Serial Communication Board, is designed to meet PCI Express Base Specification 2.0. It can be installed in virtually any available PC system and compatible with all major operating systems.

Users do not need to manually set jumpers to configure I/O addresses and IRQ locations.

This boards offer independent RS-422 and RS-485 ports for connecting kinds of serial terminals on the PC based systems.

This board is industrial standard which offer a reliable and high performance solution for serial multi-port communications.


Features

Compliant with PCI Express 2.0 Gen 1

Supports x1, x4, x8, x16 (lane) PCI Express Bus connector keys

256 bytes TX and RX FIFOs

Up to 921.6kbps serial data rate

RS-422 and RS-485 auto detect and switching


System Requirements

Windows 7/8.x/10 (32/64 bit)

Linux 2.6.32 and newer

One available PCI Express slot


Package Contents

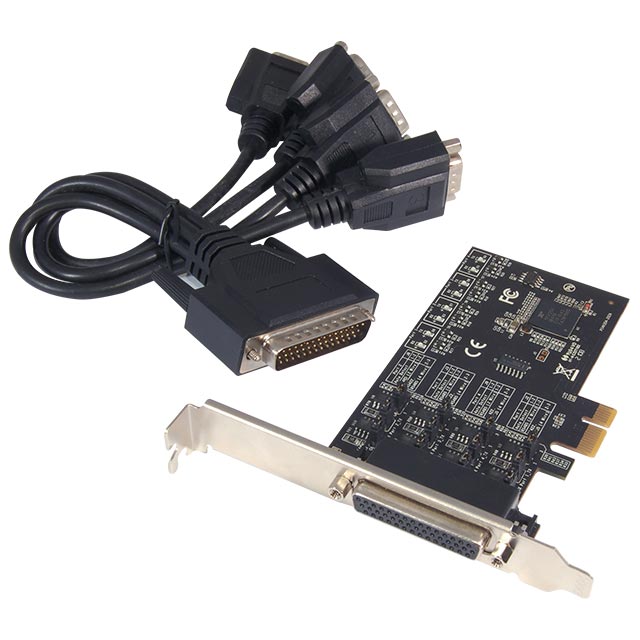

1 x 4 Port RS-422/485 PCIe Card (model dependent)

1 x Fan out cable

1 x User Manual


Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 60 x 48.5 x 34.5 cm
