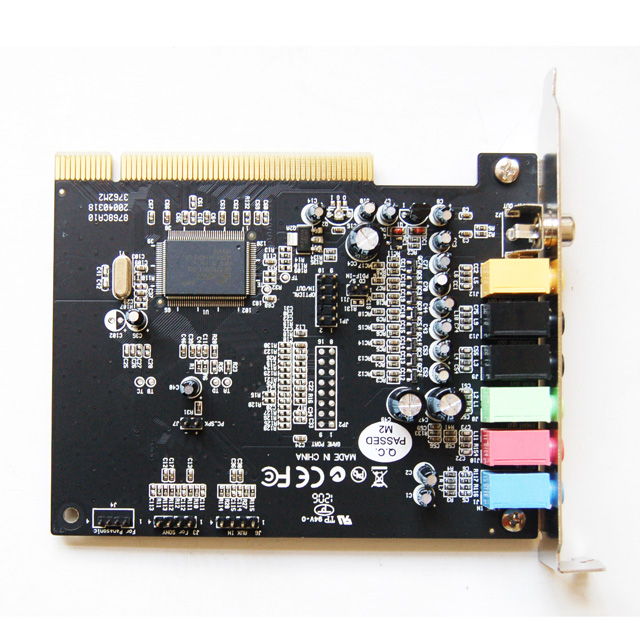

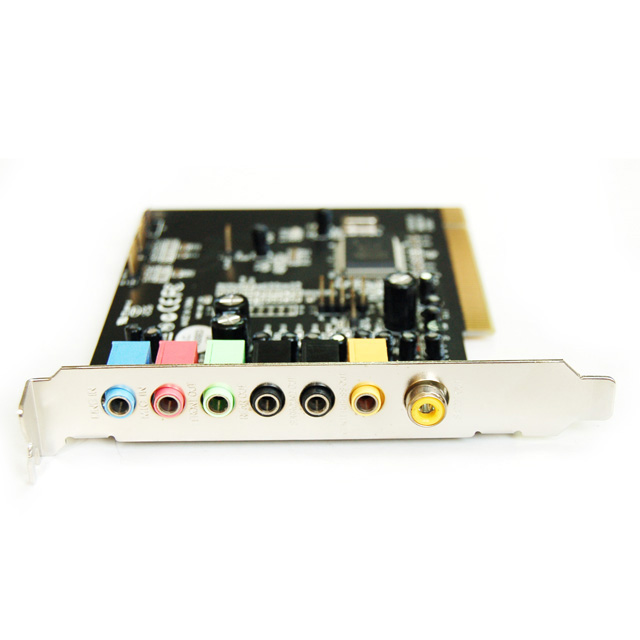

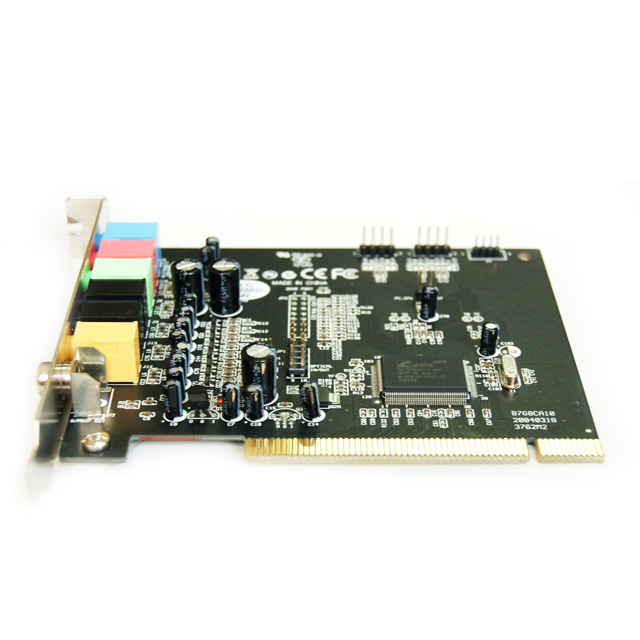

M-170 7.1 Channel PCI Sound Card

2014/01/13

Supports 96K/16 bit playback; 48K/16 bit recording
Integrated S/PDIF transmitter supports 44.1K/48KHz sample rate

  • Ordering Code: M-170
  • Part No: SP-M03-7110-00-00011
  • Solution: CMI8768

Specification:

* Chipset: C-Media 8768

* Compliant with PCI Specification, Rev. 2.2.

* PCI Plug and Play (PnP) bus interface. 24-bit PCI bus master.

* ACPI and PCI PMI support

* Supports 96K/16 bit playback; 48K/16 bit recording

* Integrated S/PDIF transmitter supports 44.1K/48KHz sample rate

* Supports the latest Dolby Digital EX and DTS ES 6.1/7.1 CH DVD soundtrack playback

* 3.3V operating supply

* Full-duplex playback and recording.

* Also supports earphones, 2/4/6/8 channel speakers mode.

* Built-in 32 OHM Earphone buffer.



Stereo Mixer

1) Stereo analog mixing from CD-Audio and Line-in

2) Stereo digital mixing from Voice, FM/Wave-table, and Digital CD-Audio

3) Mono mixing from MIC. Software adjustable volume.



System Requirements:

* Pentium-class computer with one available PCI slot

* Windows XP/Vista/7/8/8.1 (32/64 bit)

* DirectX 8.1 above is required



Accessories:

1 x User Manual, 1 x Driver CD



Packing Information:

* Retail Box Packing

* 50pcs. Per carton

* Measurement: 73.5x36x22.5 cm

* G. Weight: 9.3 Kg

* Bulk Packing

* 100pcs. Per carton

* Measurement: 60x42x40.5 cm

* G. Weight: 16 Kg
