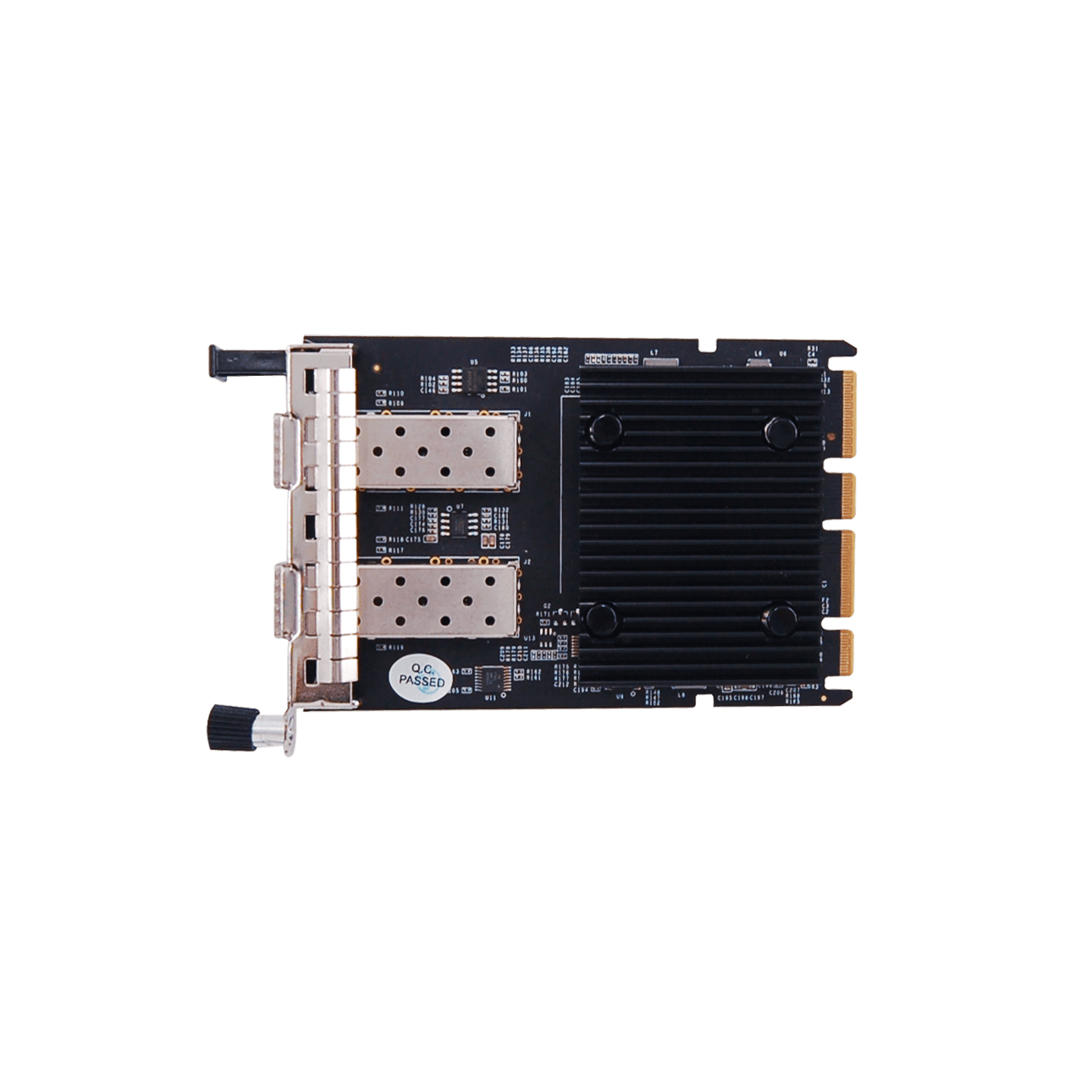

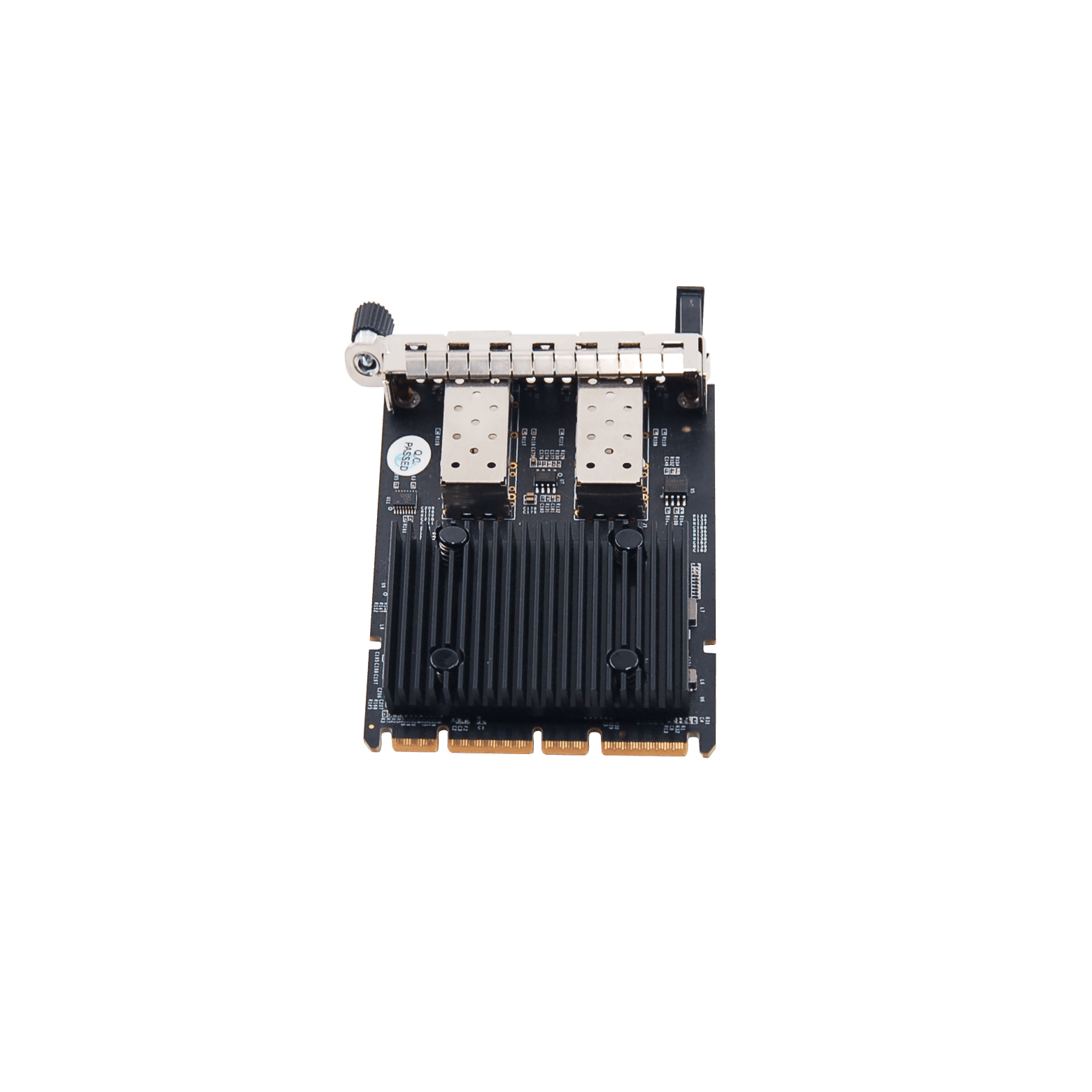

N-1000 Intel 2-Port 25G SFP28 OCP 3.0 Network Adapter

2024/01/30

OCP 3.0 Form Factor
Two 25GbE with SFP28
Intel E810-XXVAM2 Controller
PCIe Gen4 x8 host interface

  • Ordering Code: N-1000
  • Part No: NE-D34-1220-00-00012
  • Solution: E810-XXVAM2

This 2-Port 25G SFP28 OCP 3.0 Network Adapter is a flexible and scalable 25GbE solution providing 2 SFP28 ports.

Based on Intel E810- XXVAM2 network controller with performance-enhancing features and power management technologies, this adapter provides a quality networking choice for data centers while reducing CPU utilization and power consumption.

With the added NC-SI feature, this adapter can also function as a secure networking port for server remote management.


Features

OCP 3.0 Form Factor

Two 25GbE with SFP28

Intel E810-XXVAM2Controller

PCIe Gen4 x8 host interface

Compliant with OCP NIC 3.0 specification

Supports 4C+ connector

Supports OCP 3.0 scan chain, FRU NVM and NC-SI

Supports 25GBASE-SR/LR, AOC and DAC modules

Supports UEFI preboot

OCP 3.0 SFF form factor with Pull Tab (Internal Lock option by demand)


Requirements

Windows Server 2016/2019/2022

Windows 10/11

Linux kernel 4.x or later


Package Contents

1 x 2-Port 25G SFP28 Network Adapter for OCP 3.0

1 x User Manual
