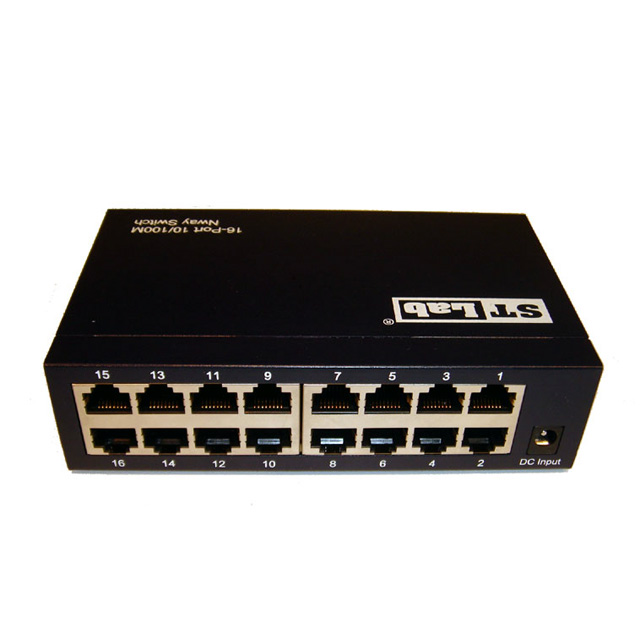

N-161 Switching HUB 16 Ports

2014/01/14

16-PORTS 10/100M NWAY SWITHCH
Optional maximum packet length 1536/1552 Bytes

  • Ordering Code: N-161
  • Part No: NN-R07-3A11-11-00012
  • Solution: RTL8316

Description: N-161, 16-PORTS 10/100M NWAY SWITHCH METAL CASE W/EUR ADAPTER



Highlight:

* 10/100Mbps twisted-pair ports with Auto-negotiation

* Bridging capability for 100Mbps and 10Mbps segments

* Supports Auto MDI/MDI-X

* Optional maximum packet length 1536/1552 Bytes



Chipset: Realtek



Bus Interface: Fast Ethernet



Features:

* 10/100Mbps twisted-pair ports with Auto-negotiation

* Bridging capability for 100Mbps and 10Mbps segments

* Provides Store-and-Forward Switching Architecture

* Supports Auto MDI/MDI-X

* Supports IEEE802.3x Flow-Control Full-Duplex operation

* Supports Back-Pressure Flow-Control Half-Duplex operation

* Optional maximum packet length 1536/1552 Bytes

* Status LED: POWER, LINK/ACT per port

* 1K entries Address Table



OS Supports: N/A



Connectors: 16 x RJ-45



Accessories:

1 x Manual, 1 x Power Adapter



Packing Information:

* Retail Box Packing

* 10pcs. Per carton

* Measurment: 34 x 29 x 22.8 cm

* G.Weight: 11.3 Kg ; N.Weight: 10.3 Kg
