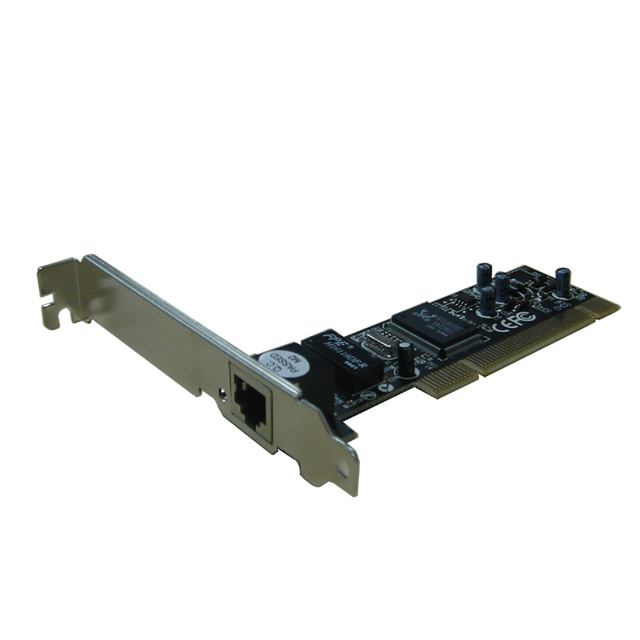

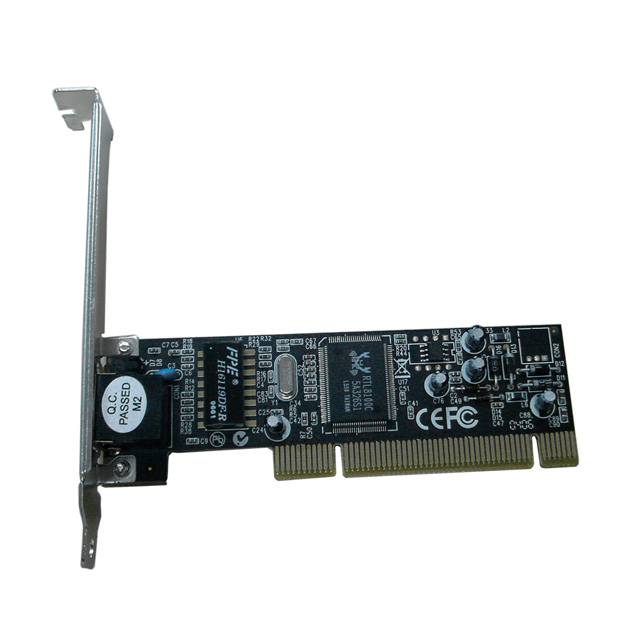

N-210 PCI 10/100 LAN Card

2014/01/14

1 x RJ45 10/100Mbps Ethernet port
Support PC99 Wake On LAN

  • Ordering Code: N-210
  • Part No: NP-R04-2100-00-00011
  • Solution: RTL8100C

Part No: NP-R04-2100-00-00011(with WOL)



Description: N-210, REALTEK PCI 10/100 LAN CARD (OPTIONAL W/WOL)



Chipset: Realtek Fast Ethernet Controller



Bus Interface: PCI Specification 2.2, 32-bit, 33MHz, 3.3V



Features:

* IEEE802.3u 100BASE-TX and IEEE802.3 10BASE-T compliant

* Support for IEEE802.3x flow control

* IEEE802.3u Auto-negotiation support for 10BASE-T and 100BASE-TX

* ACPI and PCI power management Ver. 1.1 compliant

* Support PC99 Wake On LAN

* Provides two independent long FIFOs with 2K bytes each for transmission and receiving



OS Supports: Supports ODI, NDIS, Windows 98/98SE/ME/2000/XP/NT 4.0, UNIX and Linux, Windows Vista/7/8/10 32/64 bit



Connectors: 1 x RJ-45



Accessories:

1 x Manual



Packing Information:

* Retail Box Packing

* 80pcs. Per carton

* Measurment: 59.5 x 32 x 37.5 cm

* G.Weight: 9 Kg ; N.Weight: 7.7 Kg
