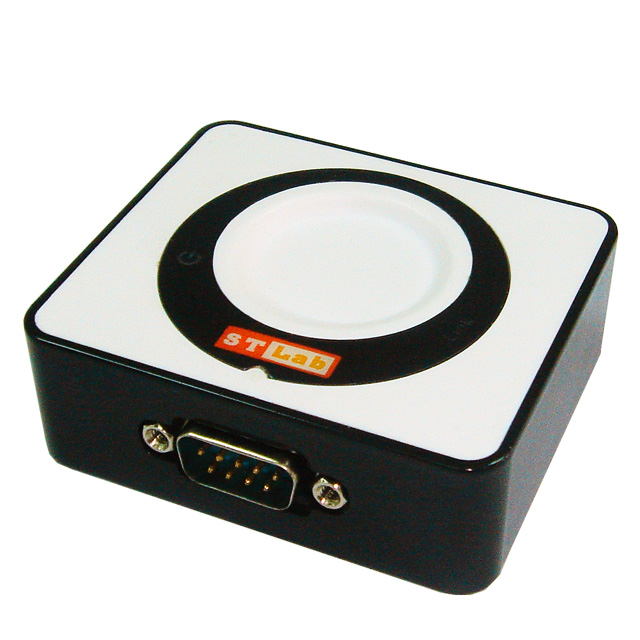

N-350 1-Port Serial Server, w/EUR Power Adapter

2014/01/15

This product can be used on local area network (LAN) only
Network Interface: 10/100Mbps RJ45
Serial Interface: RS-232 DB9 Male

  • Ordering Code: N-350
  • Part No: NN-E04-7111-11-00012
  • Solution: E1868M1+PL2303HX

Feature:

* This product can be used on local area network (LAN) only

* Allows multiple users to share a RS-232 serial device over the network from any networked computer

* Live server status monitoring via both web browser and application software

* Supports MDI/MDIX auto crossover function (Auto-MDIX)

* LEDs indicate for Power status and Ethernet connection

* Supports DHCP, configure IP Address automatically



Spec:

* Operating System Support: Windows XP / Vista

* Network Protocol: TCP/IP

* Network Interface: 10/100Mbps RJ45

* Serial Interface: RS-232 DB9 Male

* Standards: IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; RS-232

* Management: Web browser, Utility application



Accessories:

1 x User Manual, 1 x Installation CD, 1 x Power Adapter



Packing Information:

* Retail Box Packing

* 20 pcs. Per carton

* Measurment: 57 x 34.5 x 22.3 cm

* G.Weight: 5.5 Kg ; N.Weight: 4.7 Kg
