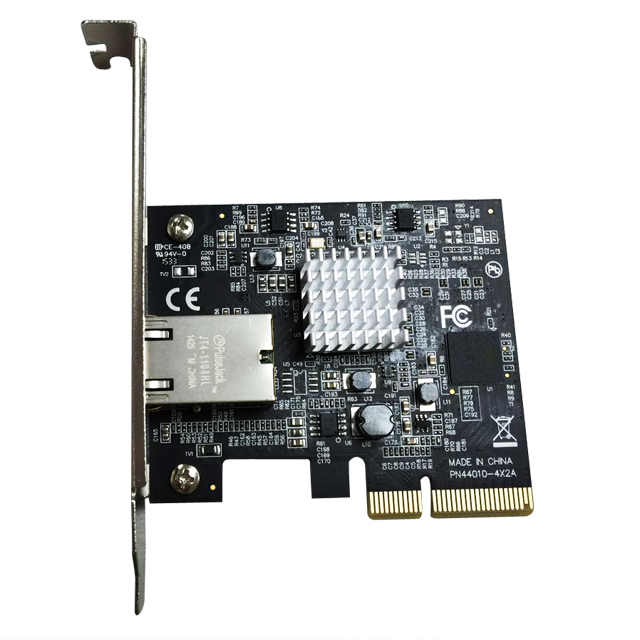

N-420 PCIe 10G 5-Speed Multi-Gigabit Network Controller Card

2015/10/27

1 x RJ45 10G/5G/2.5G/1G/100M port
Runs up to 10G at 100m Cat 6A cable and 5G at 100m Cat 5e/Cat cable
16K Jumbo Frames

  • Ordering Code: N-420
  • Part No: NE-T18-1150-00-00012
  • Solution: TN4010

This card is a NBASE-T network adapter that's runs on a high speed PCIe x4 host but interface.

This card hosts the Tehuti's new 3rd generation TN4010 controller, and optimized 10 Gigabit Ethernet MAC designed for low-power, low-cost, single-port connectivity required by Application Servers and Workstations.

The TN4010 MAC is paired with the AQRate AQR105 transceiver, a low-power, high-performance NBASE-T PHY.

This card supports auto-negotiation allowing the NBASE-T solution to optimally select the best speed: 10 Gigabit Ethernet (10GbE), 5 Gigabit Ethernet (5GbE), 2.5 Gigabit Ethernet (2.5GbE), 1 Gigabit Ethernet (GbE) or 100 Megabit Ethernet (100MbE) over Cat5e/Cat6 or better cabling.



Features

Supports 10G/5G/2.5G/1G/100M

Runs up to 10G at 100m Cat 6A cable and 5G at 100m Cat 5e/Cat cable

Backward compatibility with 1000Base-T, 100Base-T Networks

PCI Express Gen-2 x4 Host Bus interface

EEE (Energy Efficient Ethernet)

16K Jumbo Frames

IP, TCP, UDP checksum offloading

IEEE 802.1Q Tagged VLAN

Virtual NIC support

Reduced CPU utilization and improved throughput



Requirements

Hardware

The following system specs are recommended minimum

PCIe slot: Available 4-Lanes PCI-Express slot gen 2.0 or later

Processor: Quad Core 3.0GHz or higher

RAM: 4GB memory or higher



Software

Operating systems supported are (both 32 and 64 bits)

Windows 7

Windows Server 2008 R2

Windows Server 2012

Windows 8.1

Windows Server 2012 R2

Windows 10

Linux 2.6.32 - 4.x Versions only

VMware ESXi 5.x/6.0

Mac OS X 10.10.3 or later



Package Contents

1 x 5-Speed NBASE-T Network Controller Card

1 x Driver CD

1 x User Manual



Packing Information:

* Retail Box Packing

* 40 pcs. Per carton

* Measurment: 34.5 x 31 x 31.5 cm

* G.Weight: 7.8 Kg ; N.Weight: 7 Kg
