N-560 Intel PCIe 1-Port 40G QSFP+ Network Card

2018/06/13

1 x QSFP+ 40GBE port
Up to 9K Jumbo Frames

  • Ordering Code: N-560
  • Part No: NE-D22-1120-00-00012
  • Solution: Intel XL710-BM1

Get fast, high-bandwidth connectivity with this QSFP+ Network Interface Card.

It connects QSFP+ slots to your server or workstation.

The 40G NIC features an Intel controller and provides redundant network links with reliable performance.



Features

Supports common 40GbE QSFP+ optical and Direct Attached Copper modules

Up to 9K Jumbo Frames

IP, TCP and UPD checksum offloading (IPv4, IPv6) capabilities

Designed to meet PCI Express Specification Revision 3.0

Eight lane (x8) PCI Express compatible with x8 (or higher) slots

IEEE 802.1Q Tagged VLAN

IEEE 802.3ba 40GBASE-SR4

IEEE 802.3ba 40GBASE-LR4

Intel PROSet Utility for Microsoft Device Manager



Requirements

Hardware

The following system specs are recommended minimum

PCIe slot: Available 4-Lanes PCI-Express slot gen 2.0 or later

Processor: Quad Core 3.0GHz or higher

RAM: 4GB memory or higher

Software

Operating systems supported are (64 bits Only)

Windows 11

Windows Server 2008 R2

Windows Server 2012

Windows Server 2016

Linux 2.6.24 to4.11.x or later

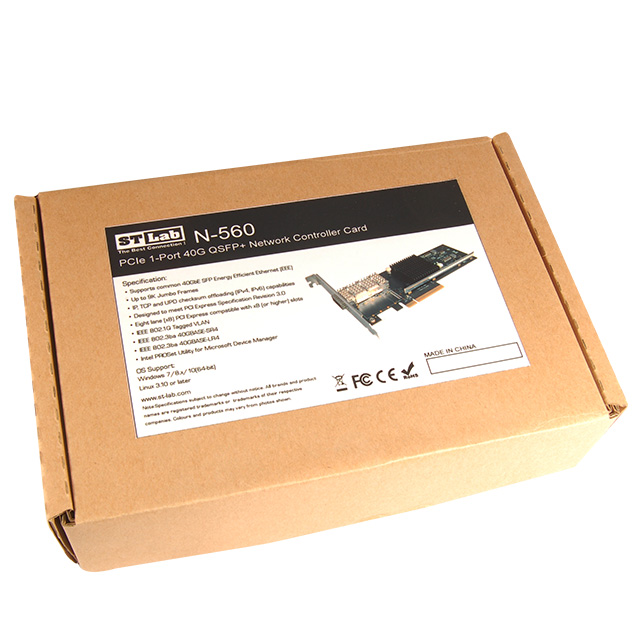

Package Contents

1 x PCIe 40G QSFP+ Network Card

1 x Driver CD

1 x User Manual
