N-590 Intel PCIe 4-Port Gigabit Server Adapter with LAN Bypass

2019/03/18

4 x RJ45 10/100/1000Mbps port
Up to 9KB Jumbo frames
LAN Bypass

  • Ordering Code: N-590
  • Part No: NE-D15-1420-00-00012
  • Solution: Intel I350-AM4

PCI Express is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices.

The architecture is a cost-effective, low-pin count, and point-to-point technologies offering maximum bandwidth, reducing cost and design complexity and enabling smaller form factors. This card is the best solution for Gigabit Ethernet PCI Express and the interface has a potential transfer rates of 5 Gbps using a four-lane (or x4) PCI Express link.

This card is a 4-Port Gigabit Ethernet PCI Express Card, which is specifically designed to plug into a desktop equipped with an available x4, x8 or x16 PCI Express slot. It supports high performance dual channel networking and full duplex communication to achieve up to 2000 Mbps and fast transfer rates, yet is compatible with existing Ethernet.

It comes with a comprehensive of software drives for all desktop operating systems, including Microsoft Windows and Linux.



Features

Four 10/100/1000Mbps compatible RJ-45 Ethernet ports

Four-lane (or x4) PCI Express compatible with x4, x8 and x16 PCI Express slots

Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Supports 10/100/1000M data auto-negotiation

Up to 9KB Jumbo frames

LAN Bypass



System Requirements

Windows 7/8.x/10/11 (32/64 bit), Linux 2.4x or later

Windows Server 2008 R2/2012/ 2016

PCI Express x4, x8 or x16 slot

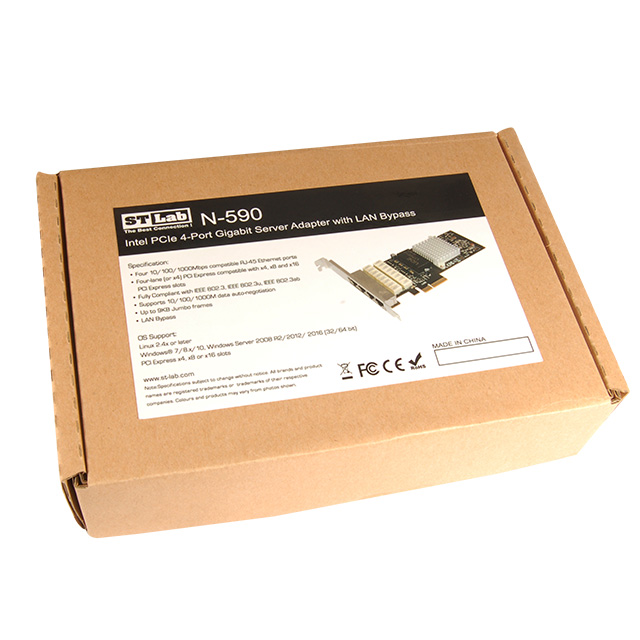

Package Contents

1 x 4-Port Gigabit Server Adapter with LAN Bypass

1 x Driver CD

1 x User Manua
