U-1010 PCIe Quad Core USB 3.0 4-Port Card

2015/03/31

4 x USB 5Gbps Type-A port
Supports 4 downstream ports for all speeds
Bandwidth up to 20Gbps

  • Ordering Code: U-1010
  • Part No: IE-N54-1840-00-00012
  • Solution: PI7C9X2G608+uPD720202 x4

 U-1010 is an ultimate performance quad lane USB 3.0 HBA with bandwidth up to 20Gbps that can easily handle massive data transfer to/from high speed USB storage.

Each of the four ports has 5Gbps bandwidth and supports USB Battery Charging 1.2. Copying is done in a split second.



Features

PCI-Express 2.0x4

Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s

Complaint with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 4 downstream ports for all speeds

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements

Windows XP/Vista/7/2008 R2/8/8.1/10 (32/64 bit), Linux 2.6.31 or later

PCI Express x4, x8 or x16 slots



Package Contents

1 x Quad Channel 4-Port USB 3.0 PCI Express Card

1 x Driver CD

1 x User Manual

Note: Contents may vary depending on country/market.



Packing Information:

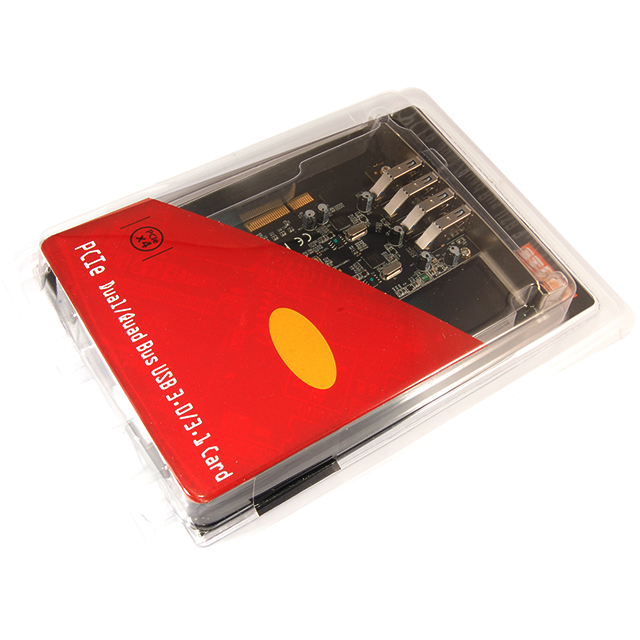

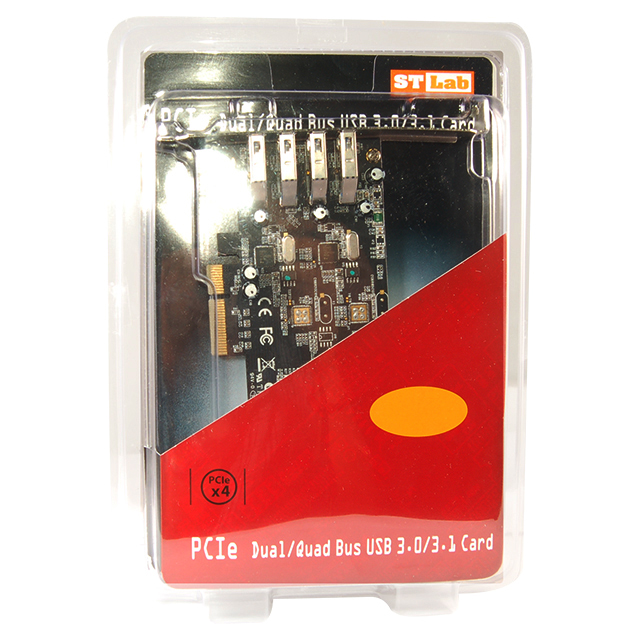

* Retail Blister

* 40 pcs. Per carton

* Measurment: 52.7 x 45.5 x 35.5 cm

* G.Weight: 10 Kg ; N.Weight: 8.1 Kg
