U-1050 USB 3.1 to SATA Data Cable

2015/06/10

Speed up to 10Gbps
Bus bandwidth of Serial ATA up to 6Gbps
Supports both SATA 2.5'' and SATA 3.5'' hard drives

  • Ordering Code: U-1050
  • Part No: U3-A41-DF11-11-00012
  • Solution: ASM1351

With the latest USB 3.1 Gen2 technology at speed up to 10Gbps, U-1050 has enough bandwidth to capitalize the 6Gbps transfer rate of SATA III.

It comes in USB-A connector so that it is compatible with old machine and ready for the new USB 3.1 standard.


Features

Compliant with USB 3.1 Specification Revision 1.0

Compliant with USB Specifications Revision 2.0

Support USB Super-speed Plus, USB Super-Speed, High-Speed and Full-Speed Operation

Support USB Mass Storage Class, Bulk-Only Transport Specification Revision 1.3

Support USB Attached SCSI Protocol Specification Revision 1.0

Compliant with Serial ATA Specification Revision 3.2

Bus bandwidth of Serial ATA up to 6Gbps

Supports ATA/ATAPI Packet Command Set

Support ATA/ATAPI LBA48 addressing mode

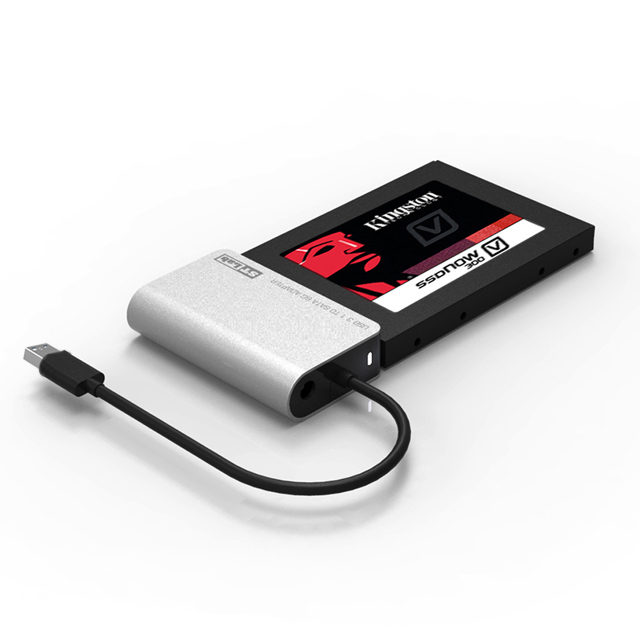

Supports both SATA 2.5'' and SATA 3.5'' hard drives

Supports SATA ATAPI Optical Drives

LED to indicate driver power and activity



System Requirements

Windows® 7/8/8.1/10 (32/64 bit)

Available USB 3.0/3.1 Type-A port



Package Contents

1 x USB 3.1 to SATA 6G Cable

1 x User Manual

1 x Power Adapter (Optional)

Note: Contents may vary depending on country/market.



Packing Information:

* Brown Box Packing

* 20 pcs. Per carton

* Measurment: 35.5 x 31 x 31 cm

* G.Weight: 7.4 Kg ; N.Weight: 6.9 Kg
