U-1140 PCIe USB 3.1 Gen 2 2-Port Card

2015/03/31

1 x USB 10Gbps Type-A port
1 x Internal USB 10Gbps Type-A port
Up to 10 Gbps bandwidth performance with low latency

  • Ordering Code: U-1140
  • Part No: IE-A43-1211-00-00012
  • Solution: ASM1142

PCIe USB 3.1 Gen 2 2-Port Card   (External A+ Internal A)



U-1140 is the latest USB 3.1 Gen2 HBA. It doubles the bandwidth of USB 3.0 to a stunning 10Gbps. It comes with one external and one internal USB-A connector.

Working with the latest PCIe Gen2 or Gen3 connector, the read speed can be over 500MB/s. Explore the new SuperSpeed+ experience now.



PCIe USB 3.1 Gen 2 2-Port Card (External A+ Internal A)

Features

Compliant with PCI Express Base 3.0 Specification

Support PCI Express Gen2 x2 or Gen3 x1

Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

Compliant with Universal Serial Bus Specification Revision 2.0

Backward to compatible with USB 3.0/2.0/1.1 interface

Up to 10 Gbps bandwidth performance with low latency

Support two port of USB 3.1

Compliant with eXtensible Host Controller Interface (xHCI) Specification Revision 1.1

Support over current detection



System Requirements

Windows 7/8/8.1/10 (32/64 bit)

One available PCI Express slot (x4, x8, or x16)



Package Contents

1 x USB 3.1 2-Port PCI Express Card

1 x User Manual

1 x Driver CD

1 x Low Profile Bracket

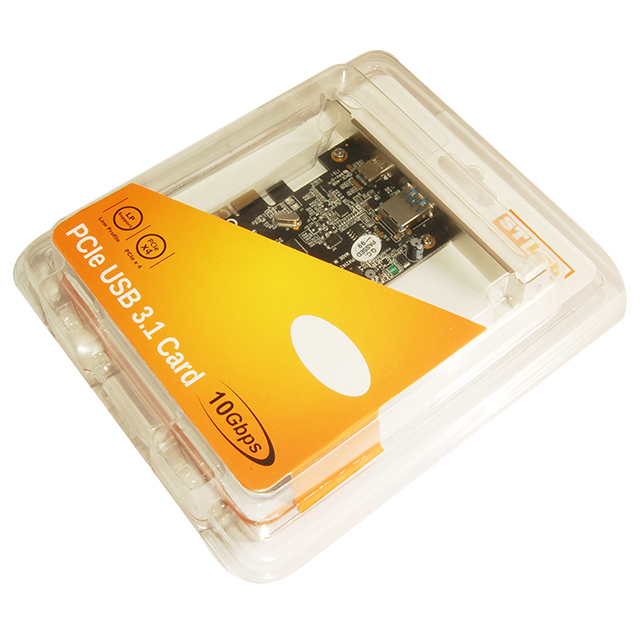

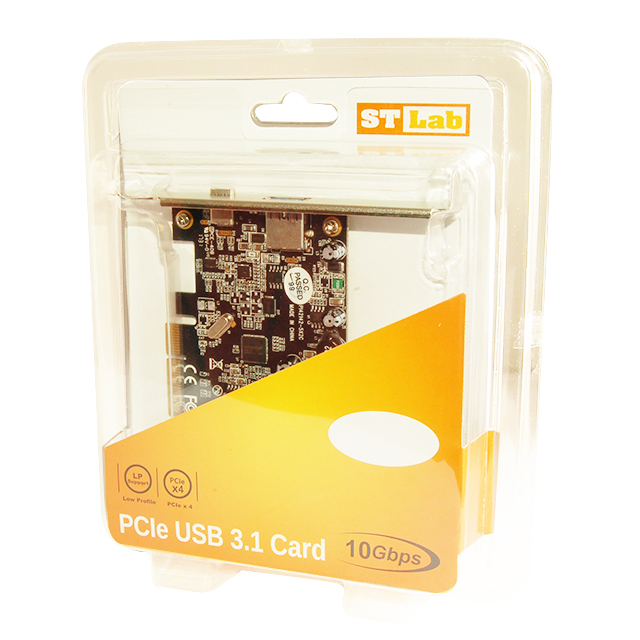

Packing Information:

* Retail Blister

* 40 pcs. Per carton

* Measurment: 56.5 x 36.1 x 43 cm

* G.Weight: 7 Kg ; N.Weight: 6 Kg
