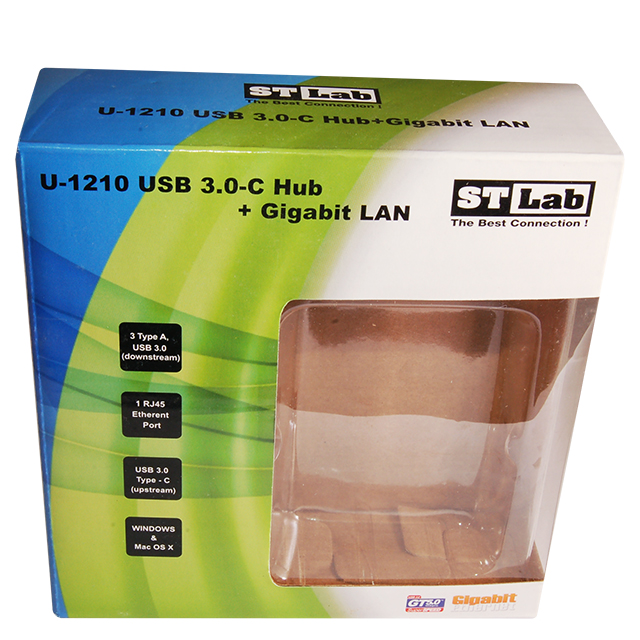

U-1210 USB 3.0-C 3-Ports Hub + Gigabit LAN

2015/06/11

3 x USB 5Gbps Type-A port
1 x RJ45 Ethernet port
Supports Wake-on-LAN
Supports jumbo frame

  • Ordering Code: U-1210
  • Part No: U3-C25-DS11-11-00014
  • Solution: VL811P+AX88179

This USB 3.1 Type-C to Hub + Gigabit Ethernet Docking Station let you get the fastest way to connect up to USB 3.0 devices quickly and easily.

It built-in three USB 3.0 Super-Speed ports, and it also integrated with a single RJ-45 Ethernet networking port.

With this USB/Ethernet Adapter, you avoid the hassles of opening up your computer case to add an internal network card.

The USB 3.0 Hub + Gigabit Ethernet Docking Station is also backward compatible with the USB 2.0 specification.


Features

General

Provides three USB 3.0 ports and one RJ-45 Gigabit Ethernet networking port with latest USB 3.1 (Type C) connector

Compliant with Universal Serial Bus 3.0 Specification, Revision 1.0

Compatible with USB Specification, Revision 2.0

LEDs indicate the status of Power status and Ethernet connection

USB 3.0 Hub

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Up to 5Gbps data transfer rate

Hot-swapping feature allows you to connect/disconnect devices without powering down the system

Built-in DC jack power connector for receiving extra power from power adapter

Gigabit Ethernet

Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control

Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Supports IEEE 802.3az (Energy Efficient Ethernet) 10/100/1000M data auto-negotiation

Supports crossover detection and auto-correction

Supports advanced link down power saving when Ethernet cable is unplugged

Supports Wake-on-LAN

Supports jumbo frame



System Requirements

Windows 7/8/10 (32/64 bit); Mac OS X 10.6/10.7/10.8

Available USB Type-C port



Package Contents

1 x USB 3.1 Type-C to Hub + Gigabit Ethernet Docking Station

1 x USB 3.1 Type-C to Micro-B Cable

1 x User Manual

1 x Driver CD

1 x 5V DC Power Adapter (Optional)

Note: Contents may vary depending on country/market
