U-1320 USB 3.0-C Gigabit LAN Cable

2015/06/11

Standard USB Type-C input and RJ45 output
Supports Wake-on-LAN
Supports jumbo frame up to 4K bytes

  • Ordering Code: U-1320
  • Part No: U3-R18-LN20-11-00012
  • Solution: RTL8153

This USB-C to Gigabit Ethernet Adapter lets your MacBook or USB-C ready device connect directly to the internet via Ethernet cable, this compact and portable adapter is ideal as a desktop replacement network adapter or laptop accessory.


Features

Add a Gigabit Ethernet network connection to your computer through the latest USB 3.1 Gen 1 (5 Gbps) technology and USB Type-C port

Works with the newest MacBook and other laptop and desktop computers with a USB-C port

Powered directly from the USB port

Supports CDC-ECM

Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control

Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Supports IEEE 802.3az (Energy Efficient Ethernet)

Supports crossover detection and auto-correction

Supports advanced link down power saving when Ethernet cable is unplugged

Supports Wake-on-LAN

Supports jumbo frame up to 4K bytes

LEDs indicate the status of Power status and Ethernet connection



System Requirements

Windows 7/8/8.1/10 (32/64 bit); Mac OS X 10.6/10.7/10.8/10.9/10.10; Linux 2.6.27 and up (tested up to 3.13)

Available USB Type-C port



Package Contents

1 x USB Type-C Gigabit Ethernet Adapter

1 x Driver CD

1 x User Manual



Packing Information:

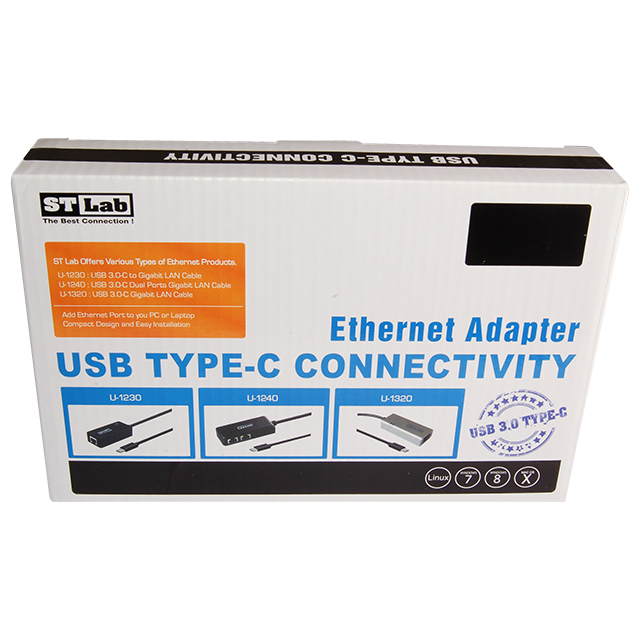

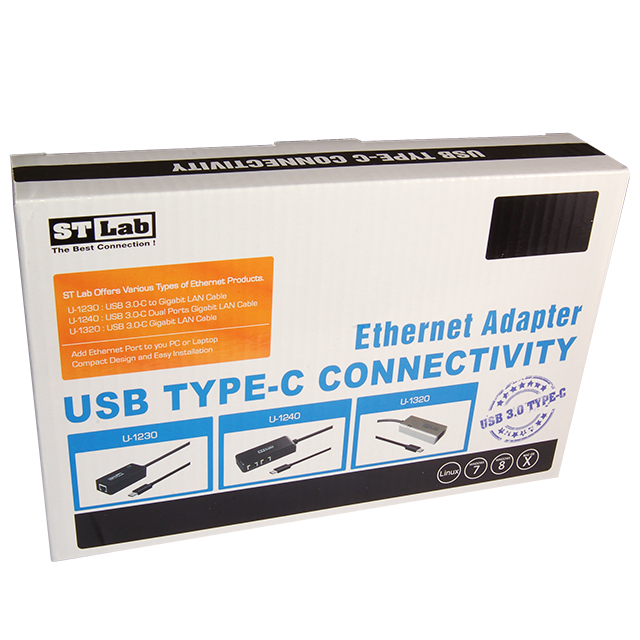

* Retail Box Packing

* 40 pcs. Per carton

* Measurment: 44.5 x 42 x 29.3 cm

* G.Weight: 5.2 Kg ; N.Weight: 4.4 Kg
