U-1430 PCIe 2 Ports USB 3.1 Gen2 Host Adapter

2015/09/23

2 x USB 10Gbps Type-C port

  • Ordering Code: U-1430
  • Part No: IE-A43-1420-00-00012
  • Solution: ASM1142

U-1430 is the latest USB 3.1 Gen2 HBA.

It doubles the bandwidth of USB 3.0 to a stunning 10Gbps. It comes with two new generation USB-C connectors.

USB-C is reversible and so no need to worry which direction to plug in.

USB-C is also better than USB-A that it increases the current from 900mA to 3A.

More devices will be supported in bus-powered mode and charging will be much faster.

For new MacBook and the new Chromebook Pixel user, your USB-C accessories will also work in your PC.



Features

Compliant with PCI Express Base 3.0 Specification

Support PCI Express Gen2 x2 or Gen3 x1

Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

Compliant with Universal Serial Bus Specification Revision 2.0

Backward to compatible with USB 3.0/2.0/1.1 interface

Up to 10 Gbps bandwidth performance with low latency

Support two Type-C port of USB 3.1

Compliant with eXtensible Host Controller Interface (xHCI) Specification Revision 1.1

Built-in over current protection on each USB port



System Requirements

Windows 7/8/8.1/10 (32/64 bit)

One available PCI Express slot (x4, x8, or x16)



Package Contents

1 x PCIe USB 3.1 Gen2 Host Adapter

1 x User Manual

1 x Driver CD

1 x Low Profile Bracket



Packing Information:

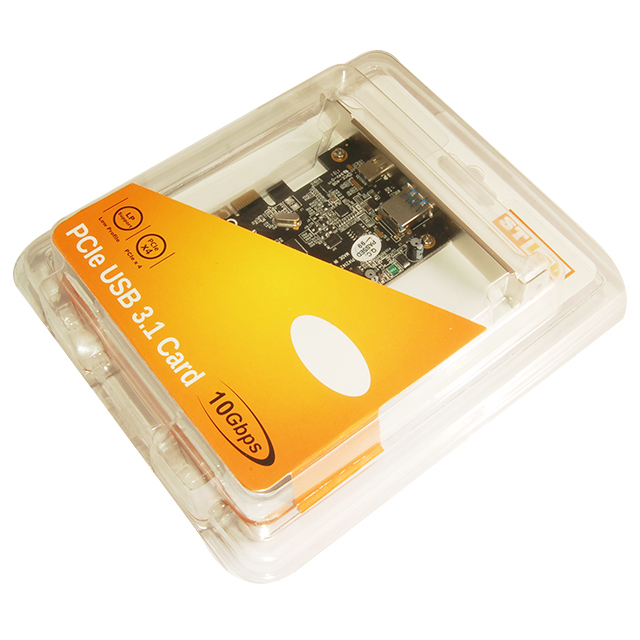

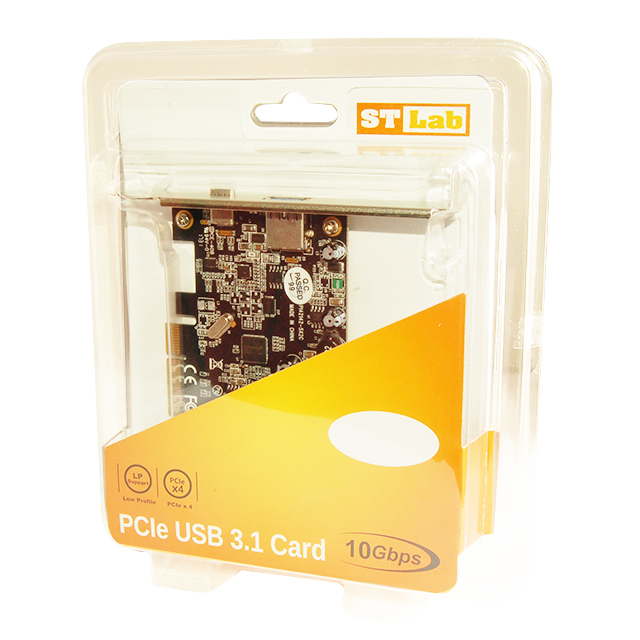

* Retail Blister

* 40 pcs. Per carton

* Measurment: 56.5 x 36.1 x 43 cm

* G.Weight: 9 Kg ; N.Weight: 8 Kg
