U-1620 PCIe USB 3.1 Card with PD(1A+1C)

2016/12/26

1 x USB 10Gbps Type-A port
1 x USB 10Gbps Type-C port
Support 12V/3A (36W) PD source on c port

  • Ordering Code: U-1620
  • Part No: IE-A43-1820-00-00012
  • Solution: ASM1142

Features

Support 2 ports of USB3.1

Support PCI Express Gen2 x2 or Gen3 x1

Compliant with PCI Express Base 3.0 Specification

Compliant with USB Specification Revision 2.0

Compliant with USB 3.1 Specification Revision 1.0

Compliant with eXtensible Host Controller Interface (xHCI) Specification Revision 1.1

Up to 10Gbps Bandwidth Performance with Low Latency

Backward Compatible with USB 3.0/2.0/1.1 Interface

Compliant with USB Power Delivery 2.0 and USB Type-C Revision 1.2 (model dependent)

USB Type-C Power Delivery port for charging notebook, tablets or smartphones (model dependent)

Support Over Current Detection

Support 12V/3A (36W) PD source on c port

15-pin SATA Power Connector or 2x4 Auxiliary Power Connector (model dependent)



System Requirements

Windows 7/ 8/ 8.1/ 10 (32/64 bit)

MacOS 10.10 or later

Linux 3.5 or later

One available PCI Express slot (x4, x8, or x16)



Package Contents

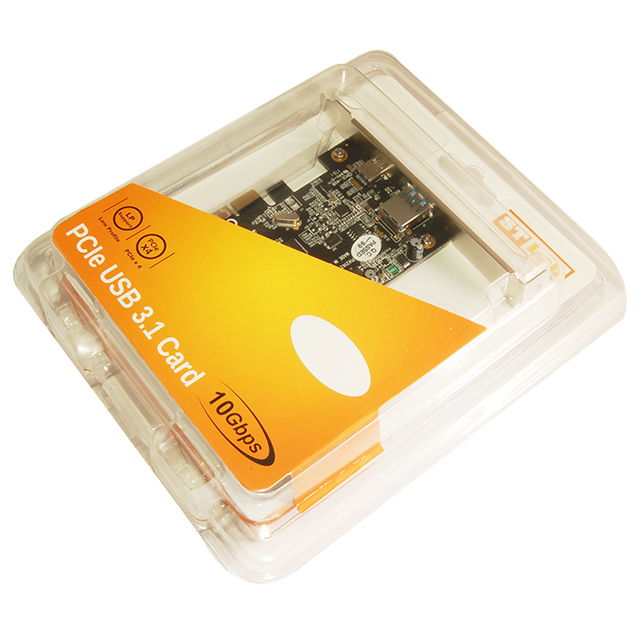

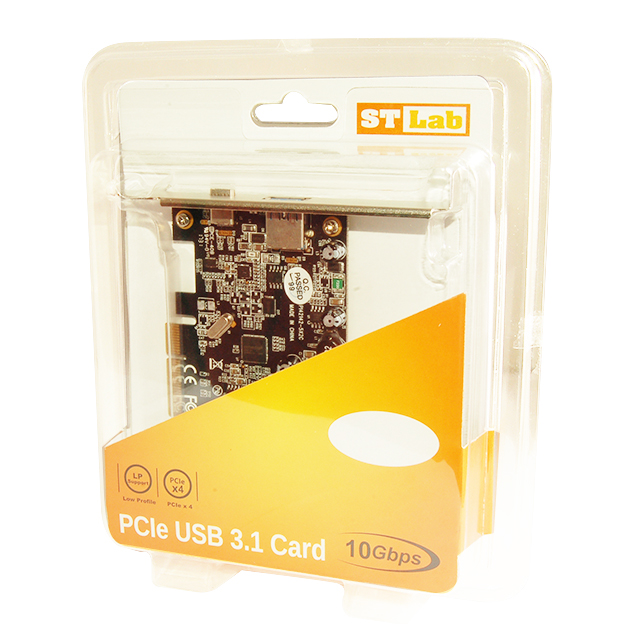

1 x PCIe USB 3.1 Card

1 x User Manual

1 x Driver CD

1 x Low Profile Bracket
