U-1670 PCIe USB3.1 2-Port Card with PD (1A+1C)

2017/07/25

1 x USB 10Gbps Type-A port
1 x USB 10Gbps Type-C port
Automatically configure PD: 20V/5A (Output Power 100W , Actual 93W)/ 20V/3A (60W) /12V/3A (36W)

  • Ordering Code: U-1670
  • Part No: IE-A44-1420-00-00012
  • Solution: ASM2142

Solution: Asmdia ASM2142 + TI TPS25741

Support 2 ports of USB3.1 : 1x Ext. Type-A + 1x Ext. Type-C

Support PCI Express Gen-Ⅲ x2

Compliant with PCI Express Base 3.0 Specification

Compliant with Universal Serial Bus Specification Revision 2.0

Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

Up to 10Gbps Bandwidth Performance with Low Latency

Backward Compatible with USB 3.0/2.0/1.1 Interface

Support Over Current Detection

USB Type-C Power Delivery port for charging notebook, tablets or smartphones

Automatically configure PD: 20V/5A (Output Power 100W , Actual 93W)/ 20V/3A (60W) /12V/3A (36W)



Features

Support 2 ports of USB3.1

Support PCI Express Gen-Ⅲ x2

Compliant with PCI Express Base 3.0 Specification

Compliant with USB Specification Revision 2.0

Compliant with USB 3.1 Specification Revision 1.0

Up to USB3.1 Gen-Ⅱ 10Gbps Bandwidth Performance with Low Latency

Backward Compatible with USB 3.0/2.0/1.1 Interface

USB Type-C Power Delivery port for charging notebook, tablets or smartphones

Automatically configure PD: 20V/5A (Output Power 100W , Actual 93W)/ 20V/3A (60W) /12V/3A (36W)

Compliant with USB Power Delivery 2.0 and USB Type-C Revision 1.2 (model dependent)

USB Type-C Power Delivery port for charging notebook, tablets or smartphones (model dependent)

Support Over Current Detection

15-pin SATA Power Connector or 2x4 Auxiliary Power Connector (model dependent)



System Requirements

Windows 7/8/8.1/10 (32/64 bit)

Windows Server 2012

MacOS 10.10 or later

Linux 3.5 or later

One available PCI Express slot (x4, x8, or x16)

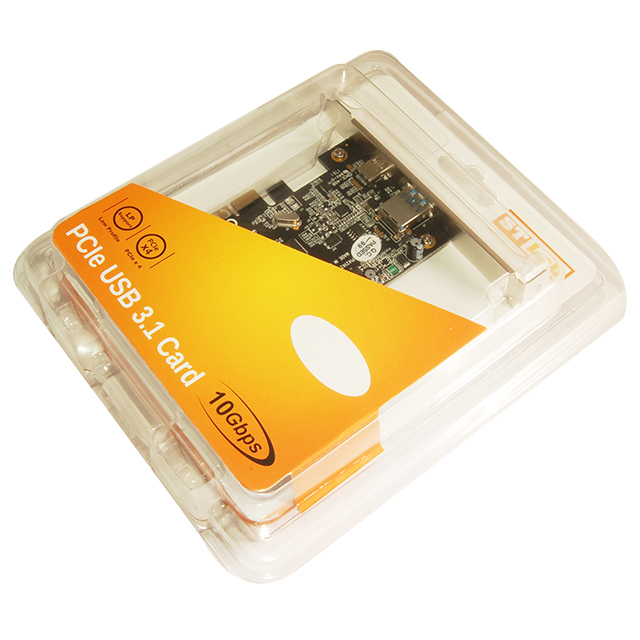

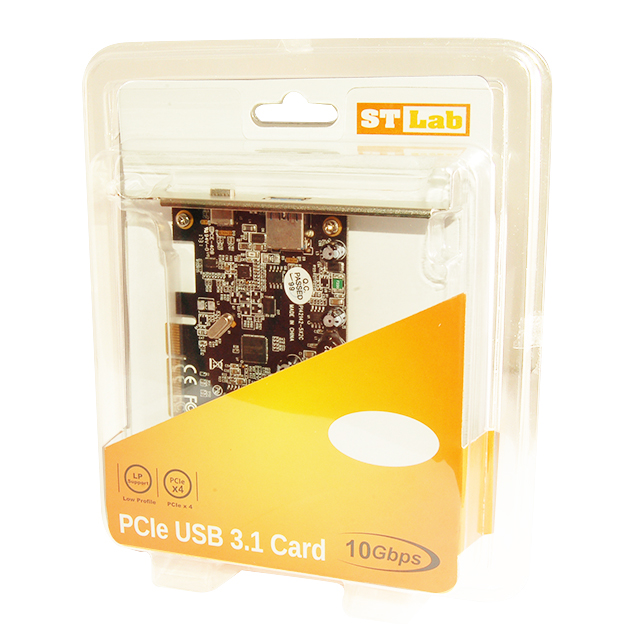

Package Contents

1 x PCIe USB 3.1 Card

1 x User Manual

1 x Driver CD

1 x Low Profile Bracket
