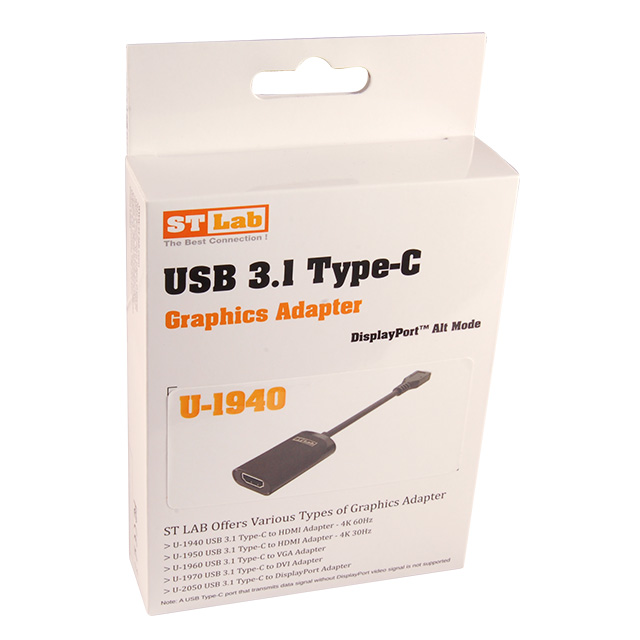

U-1940 USB 3.1 Type-C to HDMI™ Adapter - 4K 60Hz

2019/06/25

Data rate up to 6Gbps
Support UHD 4k@60Hz(RGB and YCbCr 4:4:4)
ESD 4kV HBM
Requires DisplayPort Alternate Mode capability

  • Ordering Code: U-1940
  • Part No: U3-F13-V410-11-00012
  • Solution: LT8711EH-C

This USB 3.1 Gen1 Type-C to HDMI™ Adapter provides high throughput using the USB 3.1 bus and supports the high definition monitors with high resolution and high refresh rate.

The USB 3.1 Type-C Adapter allows you to connect your computer with USB-C port to HDMI™ Display port.

Simply connect the adapter to the USB-C port on your computer and then to your TV or monitor via a HDMI™ cable.



Features

A Compliant with VESA DisplayPort Alt Mode on USB Type-C Standard V1.0

Compliant with USB Power Delivery Specification R2.0, V1.0

Compatible with USB Type-C Cable and Connector Specification R1.2

Compliant with HDMI™1.4b Alt Mode on USB Type-C Specification V1.0

Compliant with HDMI™2.0, HDMI™1.4 and DVI1.0

Compliant with HDCP2.2 and HDCP1.4

Data rate up to 6Gbps

Support UHD 4k@60Hz(RGB and YCbCr 4:4:4)

ESD 4kV HBM

No need to install drivers



Requirements

USB Type-C port with DisplayPort video signal

Note: A USB Type-C port that transmits data signal without DisplayPort video signal is not supported



Package Contents

1 x USB 3.1 Gen1 Type-C to 4K HDMI™ Adapter

1 x User Manual
