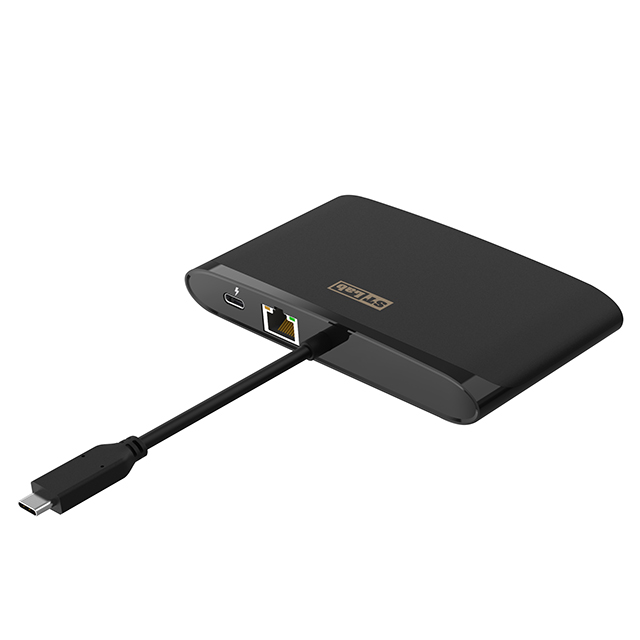

U-2190 USB 3.2 Type-C Multiport Adapter w/PD

2020/05/20

1 x HDMI port UHD 3840x2160@30Hz + 1 x VGA port
2 x USB 5Gbps Type-A port
1 x USB Type-C PD port
1 x RJ45 100/1000Mbps port
1 x SD/Micro SD card reader

  • Ordering Code: U-2190
  • Part No: U3-C50-DS20-11-00012
  • Solution: VL103Q4+AG6320+VL817+RTL8153B+GL3224

The USB 3.2 Type-C Multiport Adapter w/PD for use with a computer, extending functionality for connecting other devices.



Features

Works with USB Type-C laptop

Compliant to USB 3.0 Specification Revision 1.0 and Specification Revision 2.0

Support upstream charging of laptop

Supports jumbo frame up to 9k bytes

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Supports 100/1000Mbps Ethernet

Compliant with HDMI 2.0, HDMI 1.4

HDMI port support UHD 3840x2160@30Hz

Simultaneously display via VGA outputs

Supports Hot Plug Detection



System Requirements

Windows 7/8/8.1/10 (32/64 bit)

Mac OS X v10.8 or later

Linux 2.6.24 and 4.11.x or later



Package Contents

1 x USB 3.2 Type-C Multiport Adapter w/PD

1 x User Manual

1 x Driver CD
