U-2200 USB 3.2 Type-C Multiport Adapter W/PD

2020/08/12

1 x RJ45 10/100/1000Mbps
2 x USB 5Gbps Type-A port
1 x VGA+1x HDMI+1 x DVI
1 x SD/microSD Card Reader
1 x USB Type-C PD port

  • Ordering Code: U-2200
  • Part No: U3-C50-DS10-11-00012
  • Solution: VL103Q4+AG6320+VL817+RTL8153B+GL3224

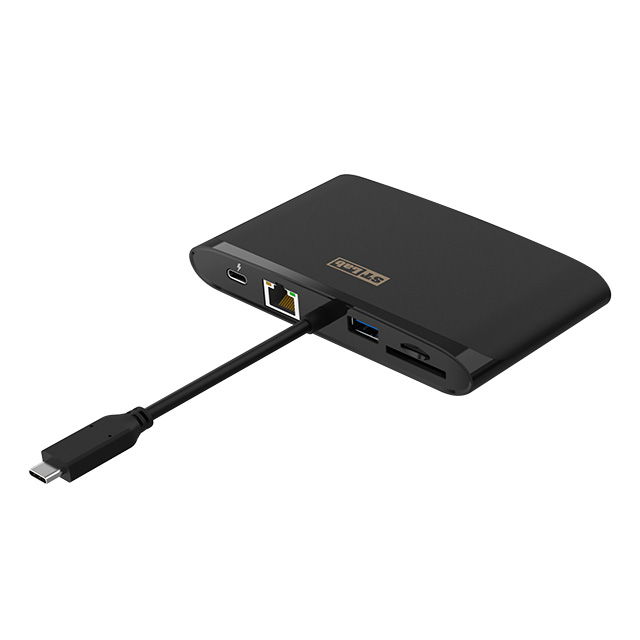

The USB Type-C Multiport Adapter lets you connect your laptop to a HDMI/DVI and VGA displays, a Gigabit Ethernet network, two SuperSpeed USB 5Gbps Type-A devices and a SD/microSD card, while also connecting to a USB-C charging power adapter.



Features

Works with USB Type-C laptop

Data rate of USB Type-A port: 5Gbps / 480Mbps /12Mbps / 1.5Mbps

Supports upstream charging of laptop

Supports jumbo frame up to 9k bytes

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Supports 10/100/1000Mbps Ethernet

Compliant with HDMI 2.0, HDMI 1.4 and DVI 1.0

HDMI port supports UHD 3840x2160@30Hz

If both HDMI and DVI ports are connected to displays, only the HDMI port has output. Simultaneous HDMI/DVI and VGA video outputs (clone mode only)

SuperSpeed USB 5Gbps SD/microSD Card Reader

Supports Hot Plug Detection



System Requirements

Windows 7/8/8.1/10/11 (32/64 bit)

Mac OS X 10.8 or later

Linux 2.6.24 or later



Package Contents

1 x USB Type-C Multiport Adapter

1 x User Manual
