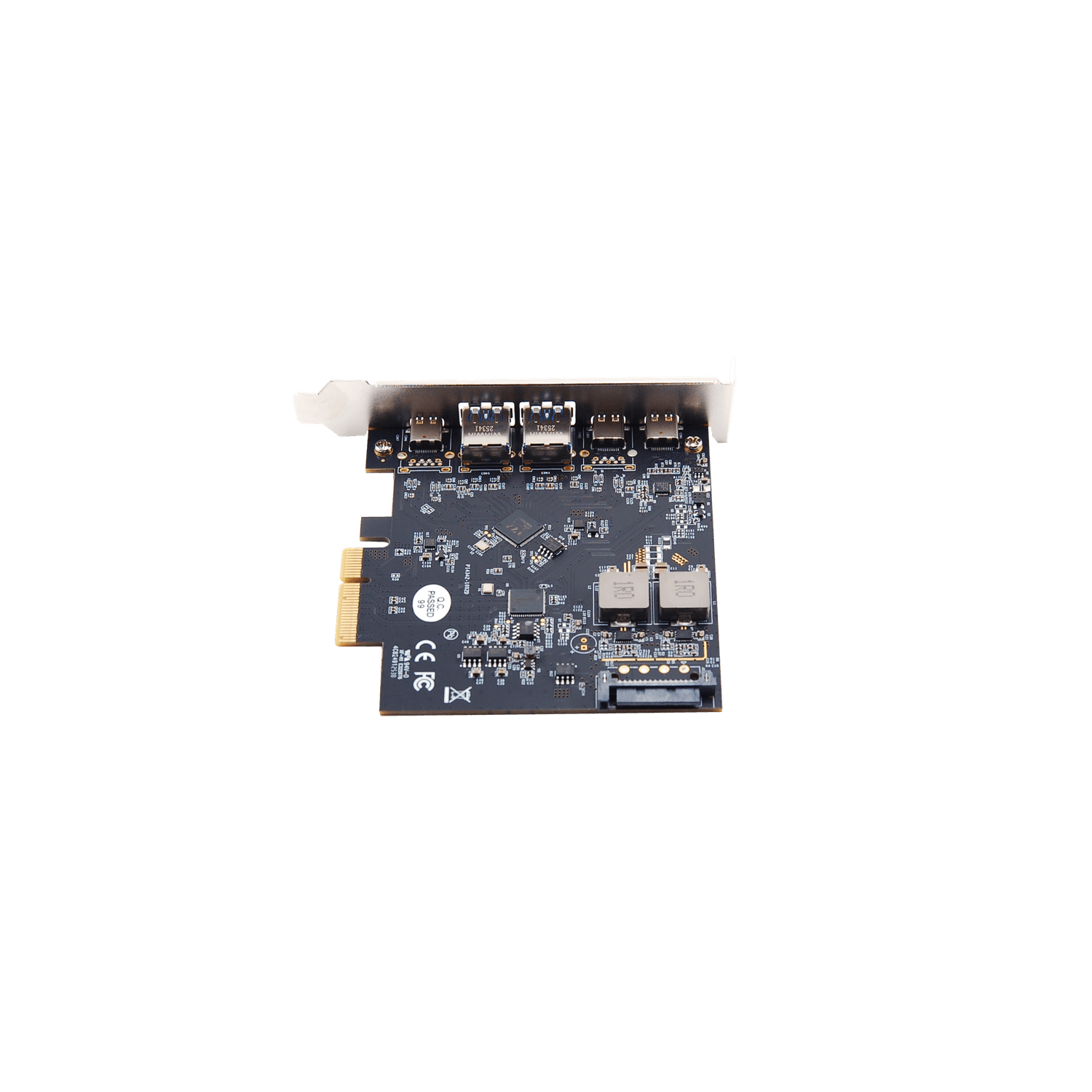

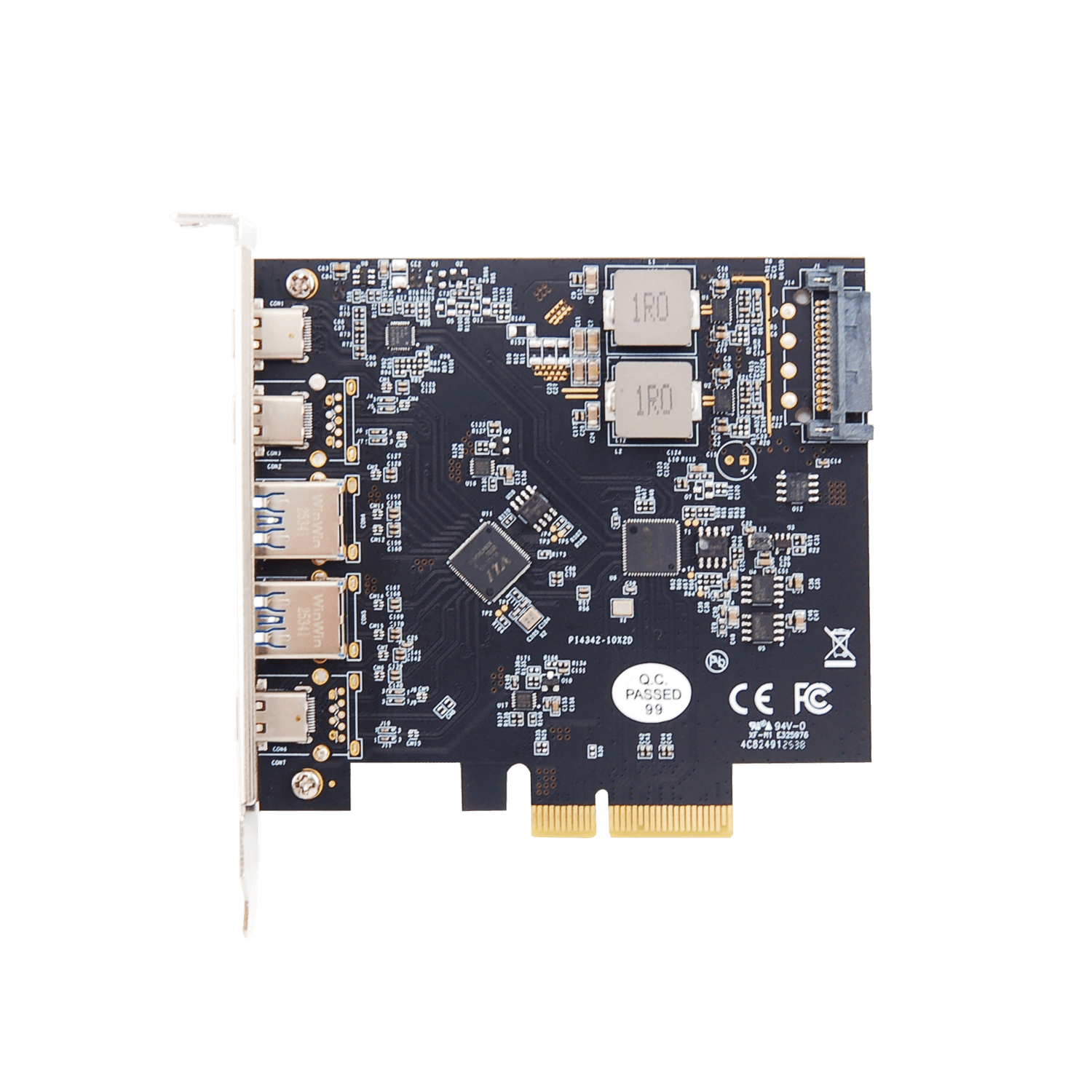

U-2320 PCIe 5 Ports USB 10Gbps Host Adapter(2A+3C)

2020/08/18

2 x USB 10Gbps Type-A port
3 x USB 10Gbps Type-C port

  • Ordering Code: U-2320
  • Part No: IE-C61-1350-00-00012
  • Solution: ASM3142+VL822

This card supporting the proprietary driver for Windows 7 and in box driver for Windows 8.0, Windows 8.1, Windows 10 and various Linux kernels.

The application of ASM3142 includes Motherboard, Desktop PC, Notebooks, Workstations, Servers, Add-in cards, PCI Express based embedded platform.

Features

Support 5 ports of USB3.2 Gen 2.

Support PCI Express Gen-Ⅲ x2.

Up to 10Gbps Bandwidth Performance with Low Latency.

Support USB Battery Charging 1.2 (Only Type-A).

Support Multiple INs.

Compliant with UASP Revision 1.0.

Support the following speed data rates:1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps.

Connect to SATA power connector to PSU when required power exceeds 75W. However, the maximum power output from all 5 ports altogether is no more than 67.5W. Therefore, it is always enough with the power provided from PCIe slot.



System Requirements

Windows 7/8.x/10 (32/64 bit);

Mac OS 10.10 or later;

Linux 3.5 or later;

One available PCI Express x4, x8 or x16 slots;



Package Contents

1 x PCIe 5 Ports SuperSpeed USB 10Gbps Host Adapter.

1 x User Manual.

Note: Contents may vary model dependent.
