U-2470 USB-C 10G Dual Display Docking Station

2021/05/17

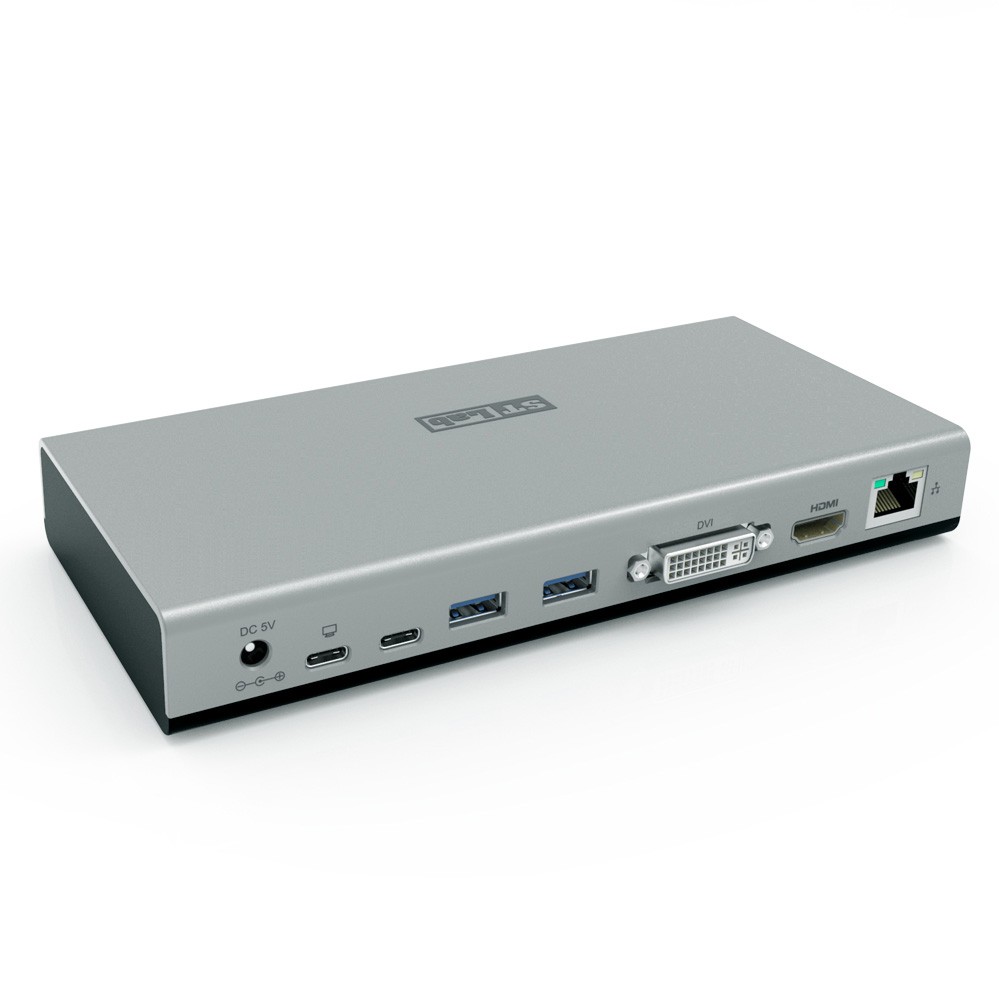

1 x HDMI™ port + 1 x DVI port
1 x RJ45 prot
1 x Audio out + Mic in
2 x USB 10Gbps Type-C
4 x USB 10Gbps Type-A

  • Ordering Code: U-2470
  • Part No: U3-C66-DS11-11-00014
  • Solution: VL822Q8+VL817+DL3900

This USB Dual Display Docking Station connects your PC/laptop to up to two additional monitors, Gigabit Ethernet connection, microphone input, speakers, two 10Gbps USB-C devices, four 5Gbps USB-A devices with a single cable.

Features

Dual Displays with one HDMI™ port plus one DVI port, allowing up to two monitors for Extend,Mirror or Primary Display.

Maximum resolutions:

Dual displays HDMI™ & DVI: 2048X1152

Single display HDMI™: 2560X1440 or DVI: 2048X1152

Gigabit Ethernet RJ-45 port, supports 10M/100M/1G connection

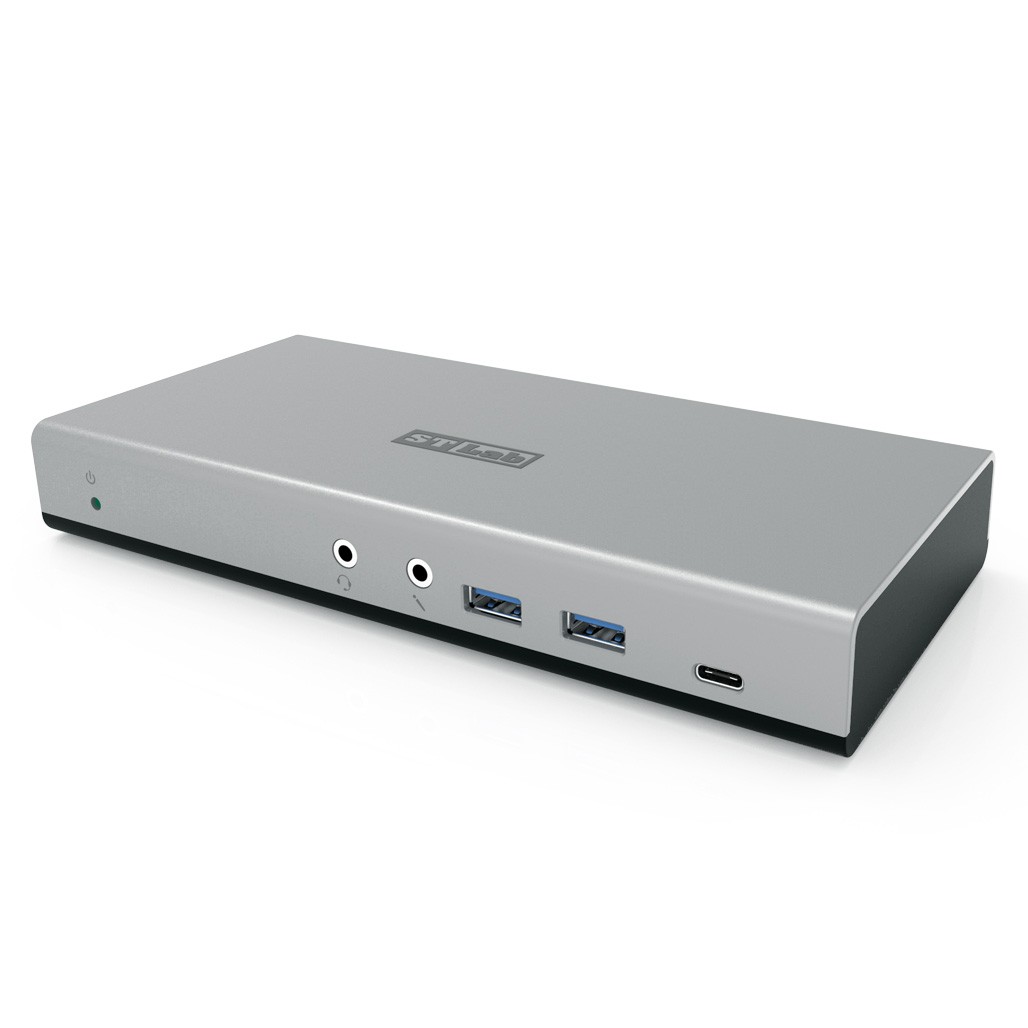

Audio Out jack to connect to speakers

Mic In jack to connect to microphone

Two SuperSpeed USB 10Gbps USB Type-C ports

Four SuperSpeed USB 5Gbps USB Type A ports with USB BC 1.2 support

Power up to 15W per USB-C port



System Requirements

Windows 7/8.x/10; macOS 10.8 or later; Ubuntu 18.04/19.04/20.04

Available USB port (USB 3.2 Gen 2 recommended)



Package Contents

1 x USB Dual Display Docking Station

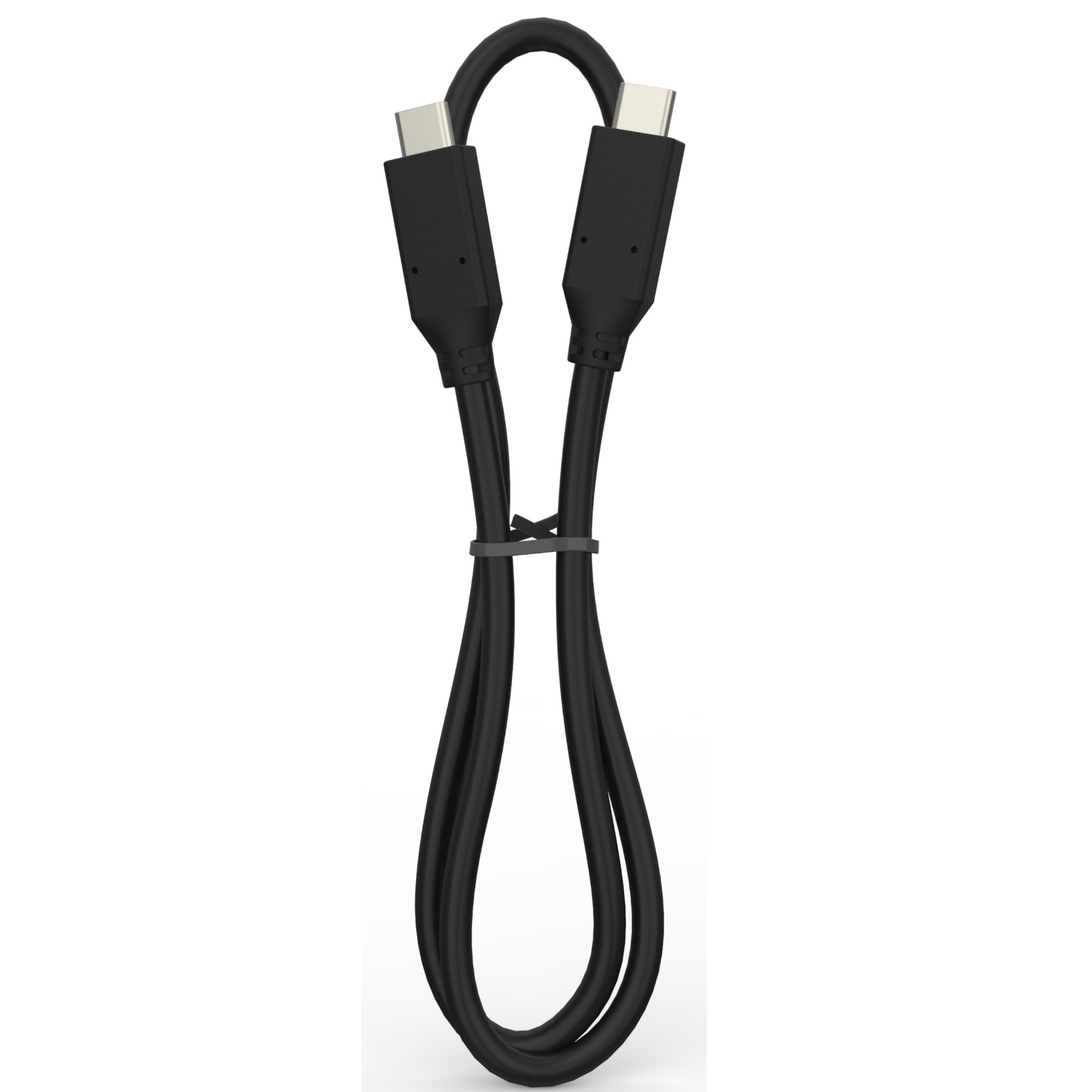

1 x USB 3.2 Cable

1 x User Manual

1 x Power Adapter
