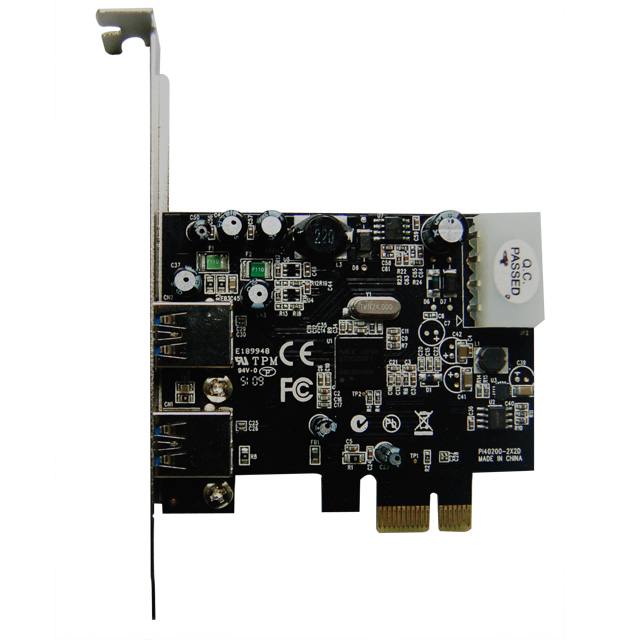

U-511 USB 3.0 2-Port PCI Express Card

2013/11/07

2 x USB 5Gbps Type-A ports

  • Ordering Code: U-511
  • Part No: IE-N46-1511-00-00012
  • Solution: uPD720200

Chipset: NEC uPD720200 CS



Features:

* Fully compliant with PCI Express Base Specification Revision 2.0

* Single-lane (x1) PCI Express through rates up to 5 Gbps

* Compliant with Universal Serial Bus 3.0 specification Revision 1.0

* Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

* Supports the following speed data rates as follows:

   Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

* Complaint with Intel eXtensible Host Controller Interface (xHCI) Specification 0.96

* Supports 2 downstream ports for all speeds

* Built-in 4-pin power connector for receiving extra power supply from system

* Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements

* Windows XP/Vista/7 (32/64 bit)

* One available PCI Express slot (Recommend PCI Express 2.0)



Accessories:

1 x Driver CD, 1 x User Manual



Packing Information:

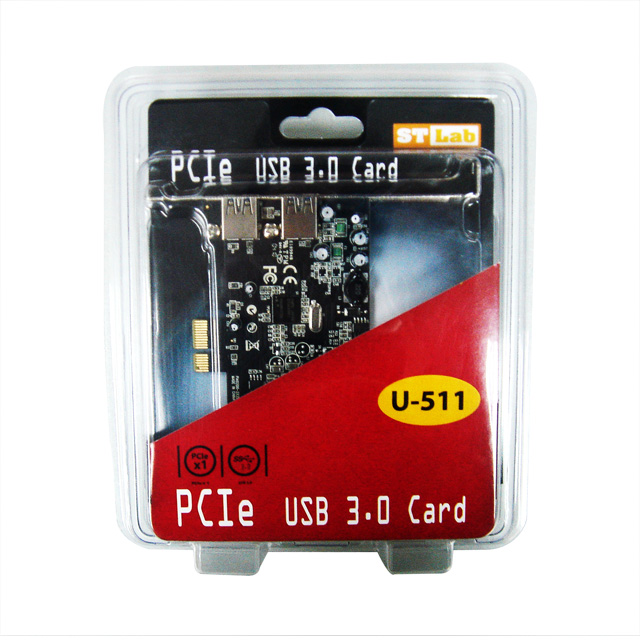

* Retail Blister Packing

* 40pcs. Per carton

* Measurement: 56x35.6x41.5cm

* G. Weight: 8.1 Kg
