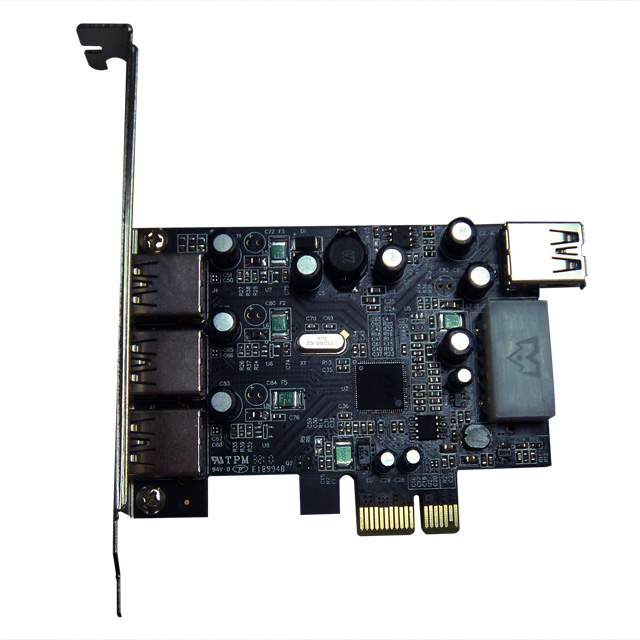

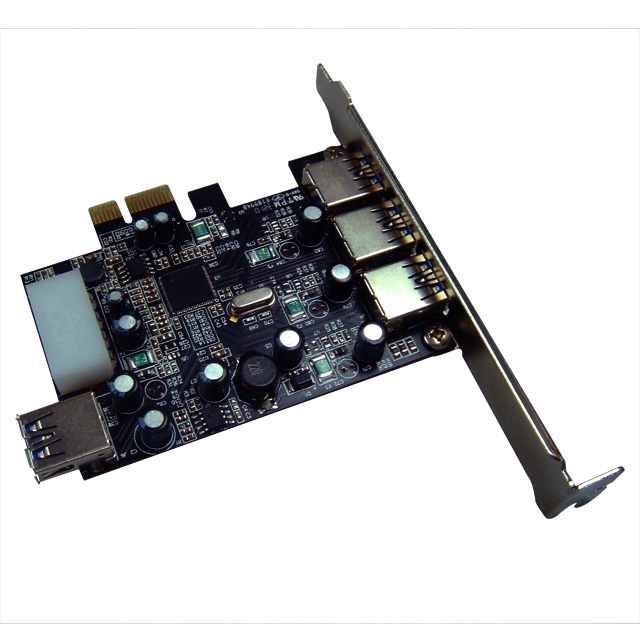

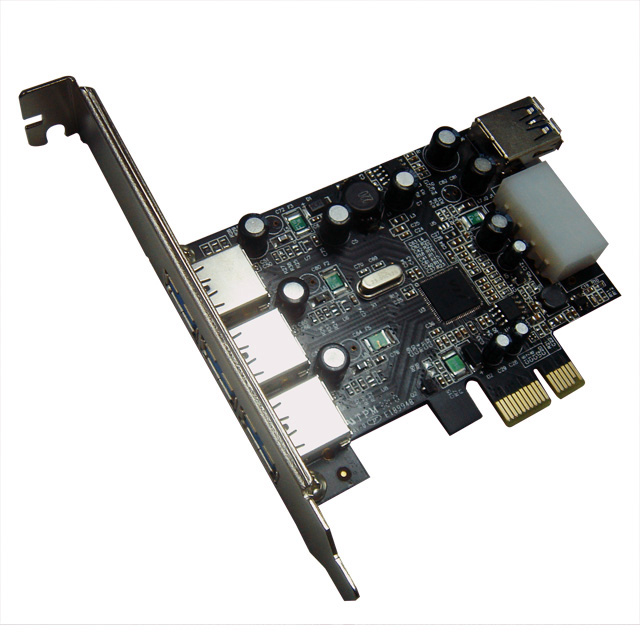

U-610 PCI-E USB3.0 (3+1) Ports

2013/11/07

3 x USB 5Gbps Type-A ports
1 x Internal USB 5Gbps Type-A port

  • Ordering Code: U-610
  • Part No: IE-V17-1131-00-00012
  • Solution: VL800

Specification:

* Fully compliant with PCI Express Base Specification Revision 2.0

* Single-lane (x1) PCI Express throughput rates up to 5 Gbps

*Compliant with Universal Serial Bus 3.0 specification Revision 1.0

* Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

* Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

* Supports 4 downstream ports for all speeds

* Built-in 4-pin power connector for receiving extra power supply from system

* Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements:

* Windows XP/Vista/7

* One available PCI Express slot (Recommend PCI Express 2.0)



 Accessories:

* 1 x USB 3.0 4-Port PCI Express Card

* 1 x Driver CD

* 1 x User Manual



Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 56.5x36.1x43 cm

* G.Weight: 8 Kg

* Retail Bulk Packing

* 100pcs. Per carton

* Measurment: 61x43x41 cm

* G.Weight: 10 Kg
