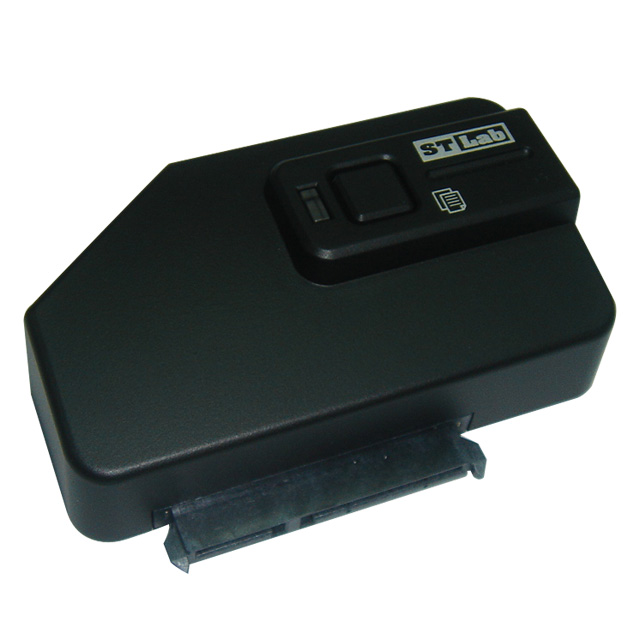

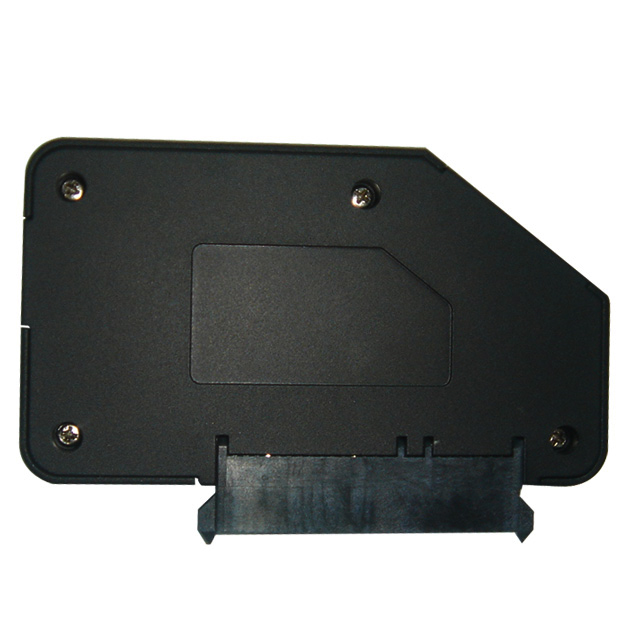

U-690 USB 3.0 to SATA 6G Adapter

2013/12/17

USB 3.0 data rate up to 5Gb/s
Bus bandwidth of Serial ATA up to 6Gbps
Supports both SATA 2.5'' and SATA 3.5'' hard drives

  • Ordering Code: U-690
  • Part No: U3-A33-DF20-11-00012
  • Solution: ASM1051E

Part No:

U3-A33-DF20-11-00012

U3-A33-DF21-11-00012



Description: U-690 USB 3.0 to SATA 6G Adapter



Specification:

* Supports USB 3.0 SuperSpeed and USB 2.0

* Plug and Play, no driver installation

* Compliant to Universal Serial Bus 3.0 Specification, Revision 1.0

* Compliant to Universal Serial Bus Specification, Revision 2.0

* Compliant with Serial ATA Specification, Revision 3.0

* Bus bandwidth of Serial ATA up to 6Gbps

* Supports ATA/ATAPI Packet Command Set

* Support ATA/ATAPI LBA48 addressing mode

* Supports both SATA 2.5'' and SATA 3.5'' hard drives

* Supports SATA ATAPI Optical Drives

* LED to indicate drive power and activity

* One Touch Backup file or data



System Requirements:

* Windows XP/Vista/7/8 (32/64 bit)

* Available USB 2.0/3.0 port (USB 3.0 recommended)



Accessories:

* 1 x FNet PCClone EX Lite Utility CD

* 1 x User Manual

* 1 x USB 3.0 A-B cable

* 1 x Power Adapter (Optional)



Packing Information:

* Retail Box Packing

* 20pcs. Per carton

* Measurement: 48x30.5x34.8cm
