U-710 PCI-E USB3.0 2 Port Card (NEC)

2013/11/18

2 x USB 5Gbps Type-A port

  • Ordering Code: U-710
  • Part No: IE-N54-1120-00-00012
  • Solution: uPD720202

Specification:

* Fully compliant with PCI Express Base Specification Revision 2.0

* Support USB Battery Charging Specification Revision 1.2

* Single-lane (x1) PCI Express throughput rates up to 5 Gbps

* Compliant with Universal Serial Bus 3.0 specification Revision 1.0

* Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

* Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps)/ High-speed (480Mbps) / Super-speed (5Gbps)

* Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

* Supports 2 downstream ports for all speeds

* Built-in 4-pin power connector for receiving extra power supply from system

* Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements:

* Windows XP/Vista/7 (32/64 bit)

* One available PCI Express slot (Recommend PCI Express 2.0)



Accessories:

1 x Driver CD

1 x User Manual



Packing Information:

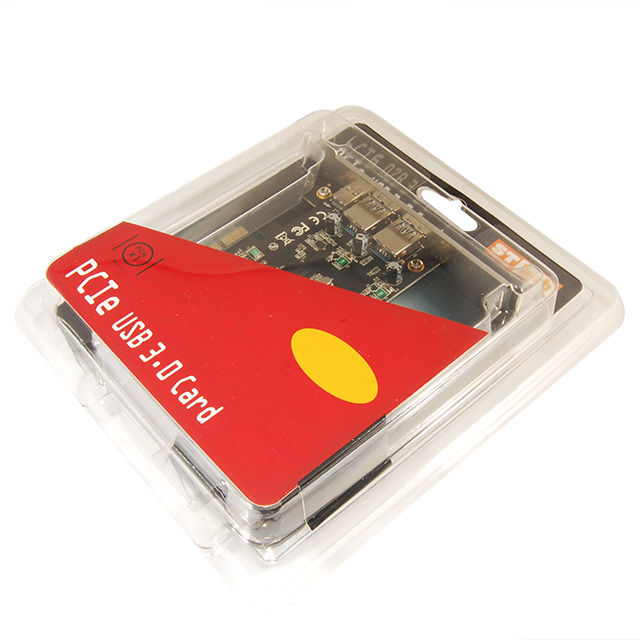

* Retail Blister

* 40 pcs. Per carton

* Measurment: 56.5x36.1x43 cm

* G.Weight: 6.7 Kg
