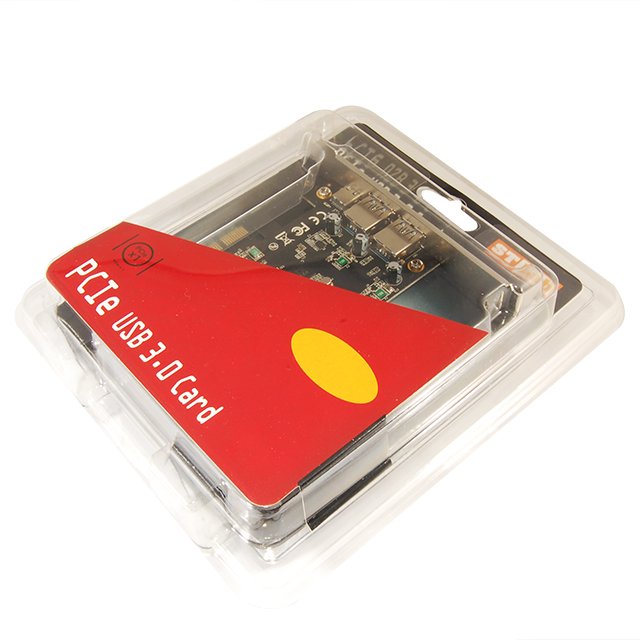

U-780 PCIe USB 3.0 4-Port (2+2) Card

2013/11/18

2 x USB 5Gbps Type-A port
2 x Internal USB 5Gbps Type-A port

  • Ordering Code: U-780
  • Part No: IE-N55-1222-00-00012
  • Solution: uPD720201

Specification:

* Fully compliant with PCI Express Base Specification Revision 2.0

* Support USB Battery Charging Specification Revision 1.2

* Single-lane (x1) PCI Express throughput rates up to 5 Gbps

* Compliant with Universal Serial Bus 3.0 specification Revision 1.0

* Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

* Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

* Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

* Supports 4 downstream ports for all speeds

* Built-in 4-pin power connector for receiving extra power supply from system

* Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements:

* Windows XP/Vista/7/8/8.1/10 (32/64 bit)

* One available PCI Express slot (Recommend PCI Express 2.0)



Accessories:

1 x Driver CD

1 x User Manual



Packing Information:

* Retail Blister

* 40pcs. Per carton

* Measurement: 56.5x36.1x43 cm
