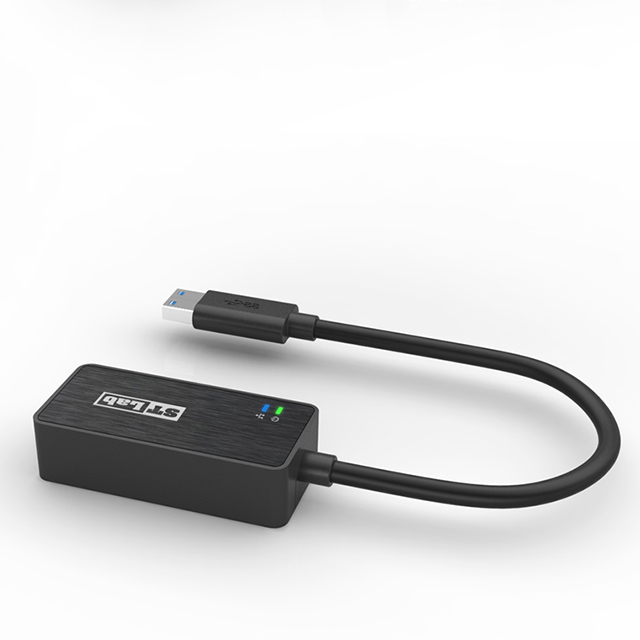

U-790 USB 3.0 Gigabit Ethernet Adapter

2013/12/24

Upstream port: USB 5Gbps type A
Downstream port: RJ45 10/100/1000Mbps Ethernet port
Supports Wake-on-LAN

  • Ordering Code: U-790
  • Part No: U3-A35-LN10-11-00012
  • Solution: AX88179

Description: U-790 USB 3.0 Gigabit Ethernet Adapter



Specification:

* Compliant with Universal Serial Bus 3.0 Specification, Revision 1.0

* Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control

* Compatible with USB Specification, Revision 2.0

* Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

* Supports IEEE 802.3az (Energy Efficient Ethernet)

* Supports advanced link down power saving when Ethernet cable is unplugged

* Supports Wake-on-LAN

* Supports crossover detection and auto-correction

* LEDs indicate the status of Power status and Ethernet connection

* Upstream port: USB 3.0 type A

* Downstream port: RJ45



System Requirements:

* Windows XP/Vista/7/8 (32/64 bit); Mac OS X 10.6/10.7/10.8

* Available USB 2.0 port (Recommend USB 3.0 port)



Accessories:

1 x Driver CD

1 x User Manual



Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 43x28.3x32.3 cm

* G.Weight: 5.2 kg

* N.Weigt: 4.6 kg
