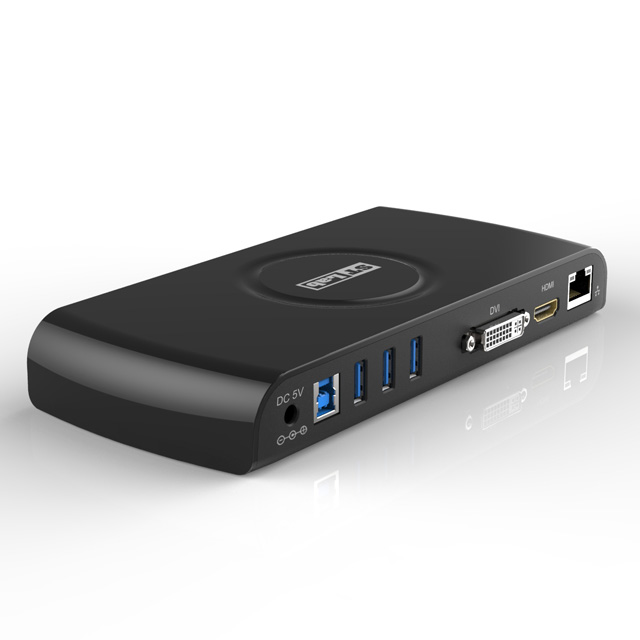

U-860 USB 3.0 Dock with Card Reader

2014/07/25

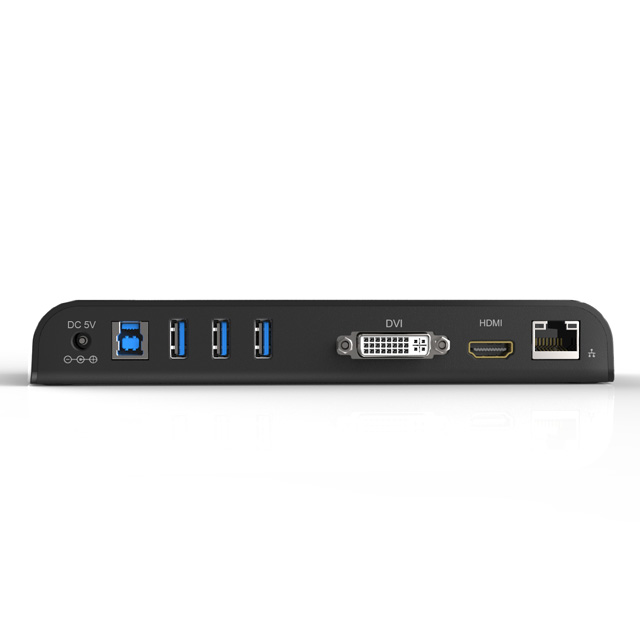

1 x RJ45 10/100/1000Mbps Ethernet port
5 x USB 5Gbps Type-A port
1 x SD/MicroSD card reader
1 x HDMI port
1 x DVI port
Audio In & Out

  • Ordering Code: U-860
  • Part No: U3-C30-DS11-11-00012
  • Solution: VL811P+DL3900+GL3221

U-860 USB 3.0 Docking Station enables multiple USB devices to be connected to the computer using a single USB 3.0 cable.

Now with one simple cable connection to your computer you can have access to large screen display, stereo speakers, SD & MicroSD card reader, external hard drive, optical disk drive, printer, USB keyboard and more.

Just plug in the USB 3.0 cable from the USB 3.0 Docking Station to any USB 3.0 or USB 2.0 port on your laptop and your displays and accessories will be active in seconds.

To undock, simply unplug the one cable and go.


Features:

Easy Installation

An ideal solution for expanding the connectivity of Laptop, Ultrabook and Macbook

Add up to 5 x USB 3.0 ports / Dual Display / Gigabit Ethernet Connection / Audio In & Out / SD & MicroSD card reader (model dependent) to your Desktop PC / Ultrabook / Macbook system with one click on driver installation

Dual Display Support allow adding up two monitors for Extend / Mirror or Primary Display

Compatible with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification

HDMI and DVI ports for two external monitors supports display resolutions up to 2048x1152 / 1920x1200

Network port offers wired Gigabit Ethernet connectivity (also 10/100 capable)

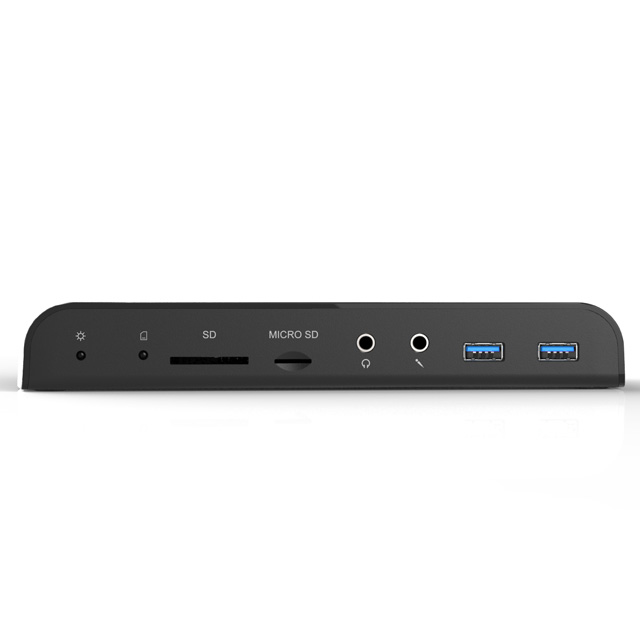

Dedicated slot for SD and MicroSD card reader (Support SD and MicroSD at a time)

Audio out to support 2.1 & virtual 5.1 channel sound & a MIC jack



System Requirements:

Windows XP 32-bit, Vista/7/8/8.1/10 (32/64 bit); Mac OS X 10.6 or above

Available USB port (USB 3.0 recommended)



Package Contents:

1 x USB 3.0 Docking Station

1 x USB 3.0 Cable

1 x User Manual

1 x Driver CD

1 x Power Adapter



Packing Information:

* Retail Box Packing

* 10pcs. Per carton

* Measurment: 41x35x25 cm

* G.Weight: 7 kg

* N.Weigt: 6.3 kg
