U-880 PCIe Dual Bus USB 3.0 4-Port Card

2014/07/17

4 x USB 5Gbps Type-A port
Total bandwidth is 10Gbps.

  • Ordering Code: U-880
  • Part No: IE-N54-1540-00-00012
  • Solution: PEX8608+uPD720202 x2

U-880 USB 3.0 4-Port Dual Bus PCIe Card is a high performance HBA.

Performance is improved by using independent channels.

5Gbps per 2 ports is twice as fast as traditional single bus USB 3.0 4-Port card.

Total bandwidth is 10Gbps.

It supports USB Battery Charging Rev. 1.2 which will charge BC 1.2 compatible device with current up to 1.5A.



Features:

PCI-Express 2.0x4

Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 10Gb/s

Support USB Battery Charging Specification Revision 1.2

Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 4 downstream ports for all speeds

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements:

Windows XP/Vista/7/2008 R2/8/8.1/10 (32/64 bit), Linux 2.6.31 or later

PCI Express x4, x8 or x16 slots



Package Contents:

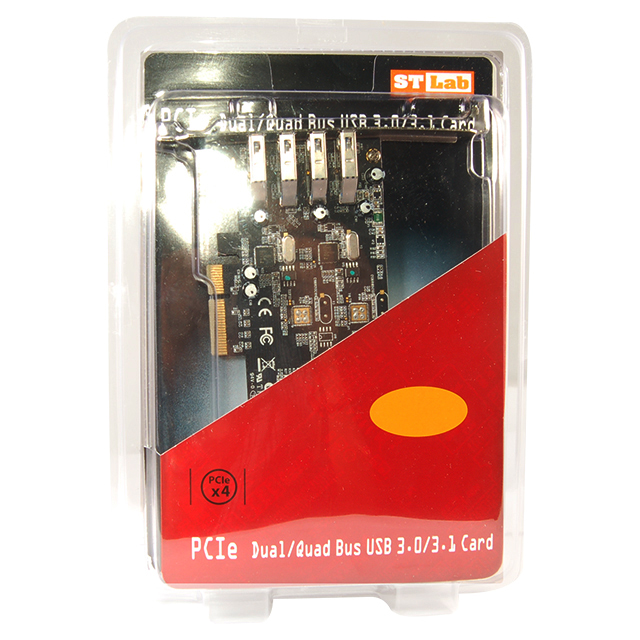

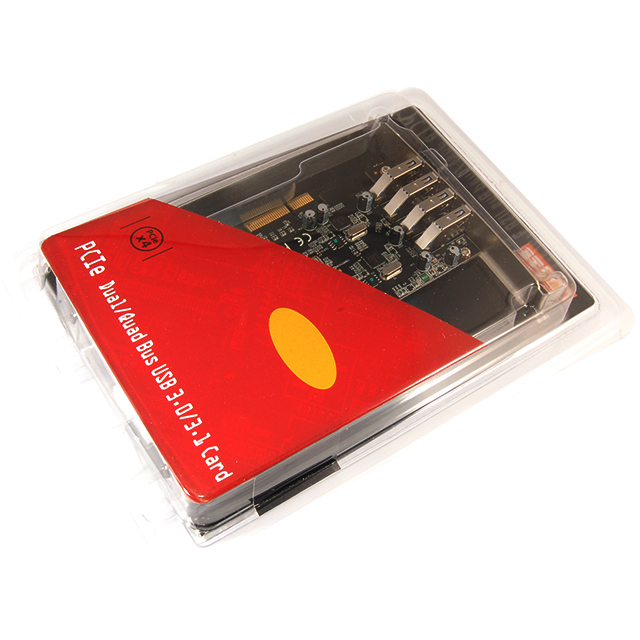

1 x Dual Channel 4-Port USB 3.0 PCI Express Card

1 x Driver CD

1 x User Manual

Note: Contents may vary depending on country/market
