U-890 PCIe Quad Bus USB 3.0 4-Port Card

2014/07/17

4 x USB 5Gbps Type-A port
Total transfer bandwidth up to 20Gb/s
Supports 4 downstream ports for all speeds

  • Ordering Code: U-890
  • Part No: IE-N54-1640-00-00012
  • Solution: PEX8608+uPD720202 x4

U-890 USB 3.0 4-Port Quad Bus PCIe Card is a high performance HBA.

Performance is improved by using independent channels.

5Gbps per port is four times as fast as traditional single bus USB 3.0 4-Port card.

Total bandwidth is 20Gbps. It supports USB Battery Charging Rev. 1.2 which will charge BC 1.2 compatible device with current up to 1.5A.



Features:

PCI-Express 2.0x4

Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s

Support USB Battery Charging Specification Revision 1.2

Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 4 downstream ports for all speeds

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements:

Windows XP/Vista/7/2008 R2/8/8.1/10 (32/64 bit), Linux 2.6.31 or later

PCI Express x4, x8 or x16 slots



Package Contents:

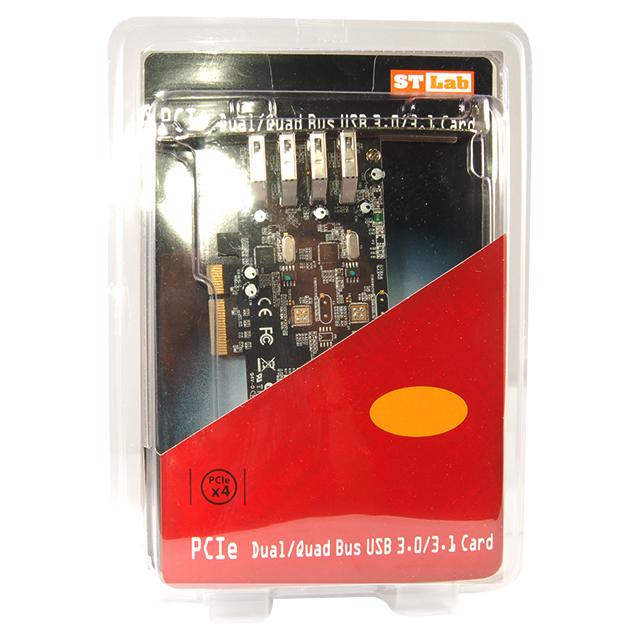

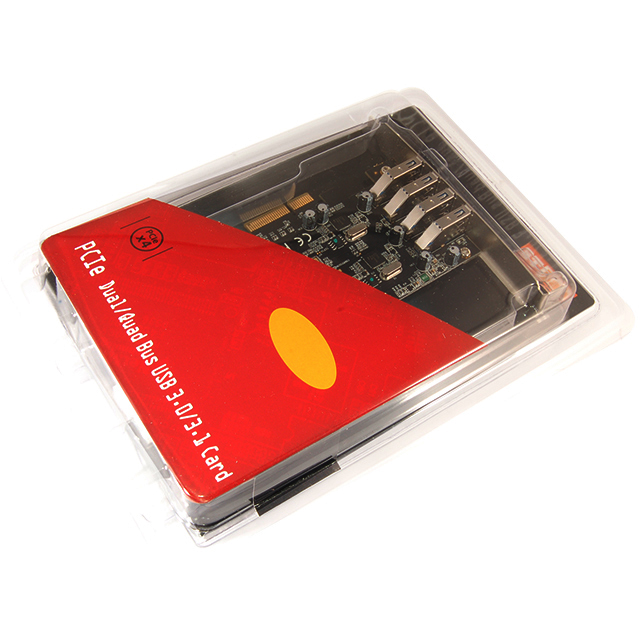

1 xQuad  Channel 4-Port USB 3.0 PCI Express Card

1 x Driver CD

1 x User Manual

Note: Contents may vary depending on country/market
