N-510 Intel PCIe 10G SFP+ Network AdapterEOL
Get a Quote ✎
2018/01/03
- 10GbE SFP+ Port
- PCIe 3.0 x8 Form Factor
- Ordering Code: N-510
- Part No: NE-D19-1120-00-00012
- Solution: Intel 82599EN
This PCIe 10G SPF+ Network Card is a costThis PCIe 10G SPF+ Network Card is a cost. This PCIe 10G SPF+ Network Card is a cost-effective solution that effective solution that delivers fast and reliable 10 Gbps network access at longer distances than copper-based networks. Using the SPP+ transceiver of your based networks. Using the SPP+ transceiver of your choice, you can connect your PCI Expresschoice-based server or workstation directly to your 10G fiber optic network.
Features
- Supports common 10GbE SFP+ optical and Direct Attached Copper modules
- Up to 9K Jumbo Frames
- IP, TCP and UPD checksum offloading (IPv4, IPv6) capabilities
- Designed to meet PCI Express Specification Revision 3.0
- Eight lane (x8) PCI Express compatible with x8 and x16 PCI Express slots
- IEEE 802.1Q Tagged VLAN
- Intel PROSet Utility for Microsoft Device Manager
| Ordering Code | N-510 |
|---|---|
| Description | Intel PCIe 10G SFP+ Network Adapter |
| Solution | Intel 82599EN |
| Form Factor | PCIe 3.0 x8 |
| Bus Width | x8 lane PCI Express |
| OS Driver Support | Windows 7/8.1/10/11 Windows Server 2008 R2/2012/2012 R2 Linux 2.6.x or later |
| Connectors | 1x 10GbE SFP+ Port |
| Data Rates | 10GbE |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -40°C – 70°C |
| EMC Standards | CE, FCC |
| Dimensions | N/A |

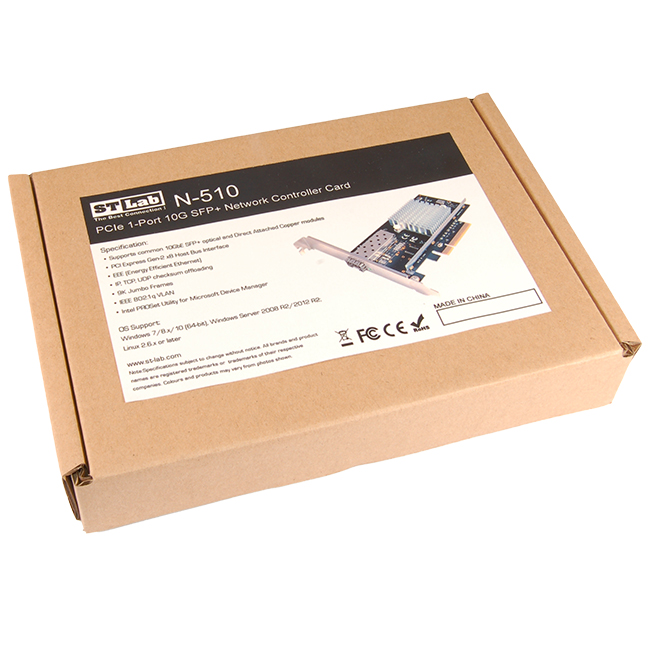

| Package Contents | 1x Intel PCIe 10G SFP+ Network Adapter 1x User Manual |
| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 4.5 Kg ; N.W: 4 Kg |
