N-641 PCIe 2.5G 4-Speed Gigabit Network Adapter
Get a Quote ✎
2020/01/09
- 1x 2.5GbE RJ45 Port
- PCIe 2.0 x1 Form Factor
- Wake-On-LAN
- Ordering Code: N-641
- Part No: NE-R26-2110-00-00012
- Solution: Realtek RTL8125B
The PCIe 2.5G Network Adapter supports data rate up to 2.5GbE. It will increase business efficiency by increasing the network speed and greatly reduce file transfer time between networked devices in a home environment, where video streaming over the network is becoming commonplace.
Features
- Supports PCI Express 2.1
- Supports 10/100/1000/2500 Mbps Ethernet
- Supports WOL
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- LEDs indicate the status of including Link/Activity (Green)
| Ordering Code | N-641 |
|---|---|
| Description | PCIe 2.5G 4-Speed Gigabit Network Adapter |
| Solution | Realtek RTL8125B |
| Form Factor | PCIe 2.0 x1 |
| Bus Width | x1 lane PCI Express |
| OS Driver Support | Windows 7/8.x/10/11 Windows Server 2008 R2/2012R2/2016 Linux 4.x or later FreeBSD |
| Connectors | 1x 2.5GbE RJ45 Port |
| Data Rates | 2.5Gb/1Gb/100Mb/10Mb Ethernet |
| Support Low-Profile Bracket | Yes |
| Operating Temperature | 0℃ – 60℃ |
| Storage Temperature | -20℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 100.8L x 120.9W x 21.6H mm |

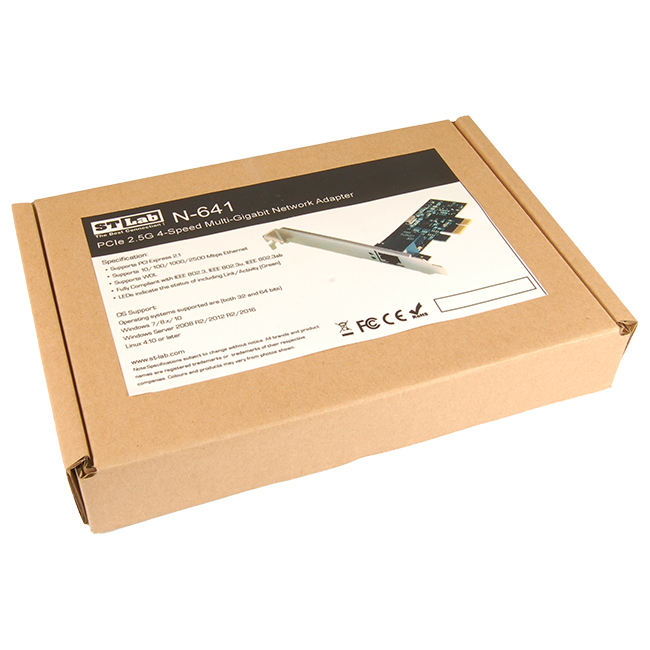

| Package Contents | 1x PCIe 2.5G 4-Speed Gigabit Network Adapter 1x Low-Profile Bracket 1x User Manual |
| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 3.2 Kg ; N.W: 2.7 Kg |
Manual :
N-641 User Manual
↧ DownloadDriver :
RTL_PCIe_GBE_FE_FreeBSD.zip
↧ DownloadRTL_PCIe_GBE_FE_Linux.zip
↧ DownloadRTL_PCIe_GBE_FE_Windows.zip
↧ DownloadQuestions & Answers :
Q: On Linux systems, when installing an RTL8125 series Ethernet adapter, the network interface may not be detected, or the network icon may disappear. How can this issue be resolved
Read More ›
