U-950 USB 3.0 to SATA 6G AdapterEOL
Get a Quote ✎
2014/07/17
- SATA 6G
- Bus Type USB 3.0 5Gbps
- Ordering Code: U-950
- Part No: U3-A37-DF11-11-00012
- Solution: ASM1153E

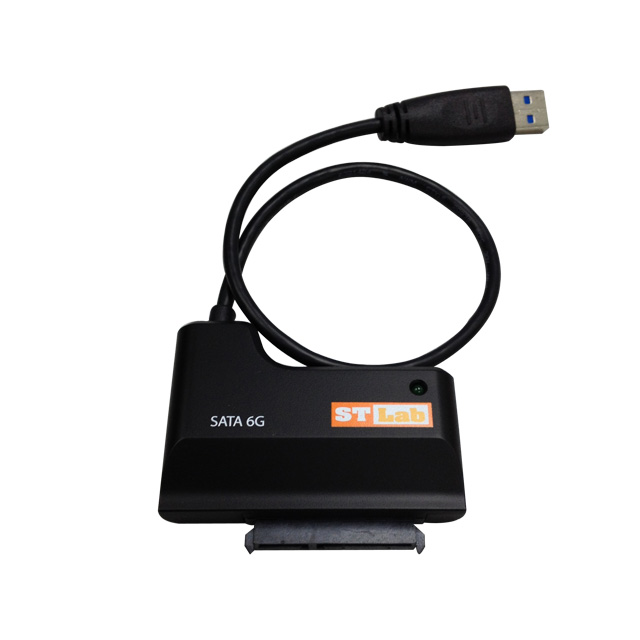

U-950 is the easiest solution for connecting any SATA storage device to the latest USB 3.0 or the ubiquitous USB 2.0 ports. U-950 is also compatible with SATA optical storage, making this adapter a very handy accessory for both Notebook, Desktop, server or any computer system.
Features
- Supports USB 3.0 SuperSpeed and USB 2.0
- Plug and Play, no driver installation
- Compliant to Universal Serial Bus 3.0 Specification, Revision 1.0
- Compliant to Universal Serial Bus Specification, Revision 2.0
- Compliant with Serial ATA Specification, Revision 3.0
- Bus bandwidth of Serial ATA up to 6Gbps
- Supports ATA/ATAPI Packet Command Set
- Support ATA/ATAPI LBA48 addressing mode
- Supports both SATA 2.5'' and SATA 3.5'' hard drives
- Supports SATA ATAPI Optical Drives
- LED to indicate driver power and activity
| Ordering Code | U-950 |
|---|---|
| Description | USB 3.0 to SATA 6G Adapter |
| Solution | ASM1153E |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows XP/Vista/7/8/8.1/10 (32/64 bit) |
| Data Rates | SATA III 6Gbps |
| Connectors | SATA III USB 5Gbps Type-A Upstream Port |
| Operating Temperature | 0℃ – 40℃ |
| Storage Temperature | 0℃ – 45℃ |
| EMC Standards | CE, FCC |
| Dimension | 68L x 48W x 15.2H mm | Cable 300mm |
| Package Contents | 1x USB 3.0 to SATA 6G Adapter 1x User Manual 1x Power Adapter (Optional) |
| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 48L x 30W x 33H cm G.W: 7.2 Kg ; N.W: 6.2 Kg |
